KNC-SRV-SMH110D-0126-20AAK-4LKC

KNC-SRV-SMH110D-0126-20AAK-4LKC

KNC-SRV-SMC130D-0200-20AAK-4LKP

KNC-SRV-SMC130D-0200-20AAK-4LKP

KNC-SRV-SMH110D-0126-20ABK-4LKC

1pc Price:
$710.00
Quantity Discount
  • Buy 10 for $683.92 each and save 4%
  • Buy 50 for $642.45 each and save 10%
  • Buy 100 for $604.10 each and save 15%
Inventory:
More Information
Rated Torque (oz-in) 850
Rated Power (Watts) 1260
Rated Speed (RPM) 2000
Max Speed (rpm) 2850
Rated Current (Arms) 6.2
Voltage 220 VAC
Brake Yes
Inertia (oz-in-sec2) 0.12037
Torque Constant KT (oz-in/A) 149
Resistance (ohms) 1.83
Inductance (mH) 13.5
Length (mm) 262
Weight (lbs) 22.49
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

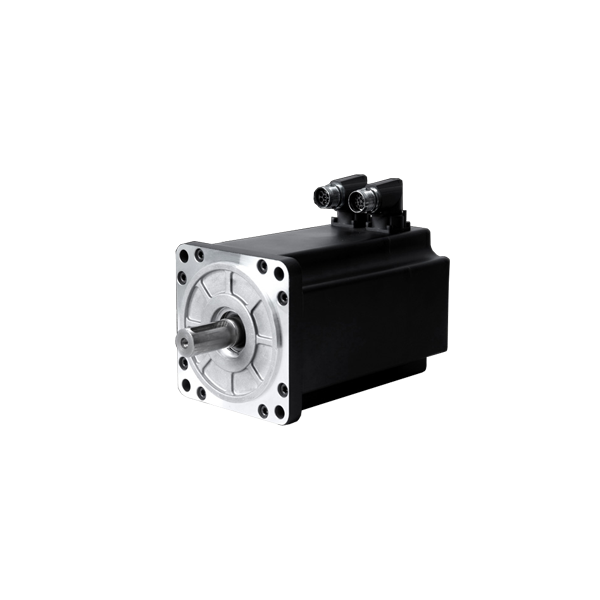

The KNC-SRV-SMH110D-0125-20ABK-4LKC Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 110mm square flange size motors boast peak torque values up to 2,550 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio.

  • 220VAC Servo Motor with Brake
  • 1260W Power Rating
  • Rated Torque of 850 oz-in
  • Maximum Speed 2850 RPM
  • 2500PPR Incremental Encoder Attached
  • IP65 Body, IP54 Shaft Seal
  • CE Certified

Spec Sheet (PDF)

Technical Specifications
