KNC-SRV-SMH60S-0020-30AAK-3LKH
| Rated Torque (oz-in) | 90 |
|---|---|
| Rated Power (Watts) | 200 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 6000 |
| Rated Current (Arms) | 1.6 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.0053 |
| Torque Constant KT (oz-in/A) | 67 |
| Resistance (ohms) | 8.02 |
| Inductance (mH) | 16.3 |
| Length (mm) | 120 |
| Weight (lbs) | 2.87 |
| Lead Time | Typ 35 Days |
Interested in large quantity discount?
Product Information

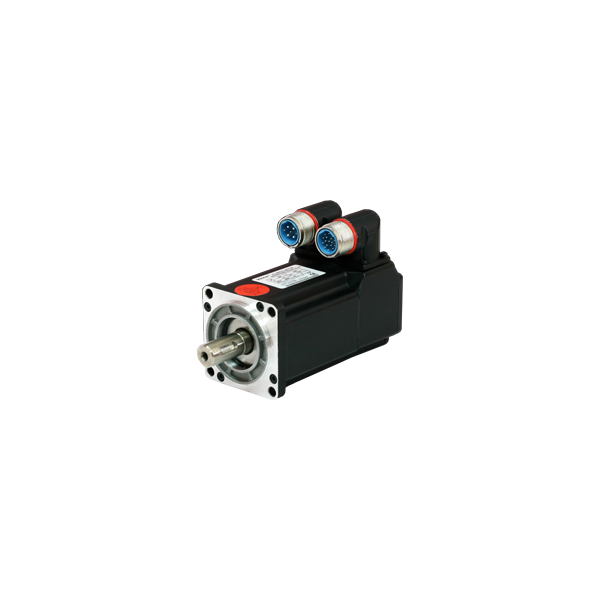

KNC-SRV-SMH60S-0020-30AAK-3LKH Servo Motors are a low-cost solution for a variety of motion control applications requiring a low-inertia design to maximize torque at high speeds. These 60mm square flange size motors boast peak torque values up to 271 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio.
- 120-220 VAC Servo Motor
- 200W Power Rating
- Rated Torque of 90 oz-in
- Maximum Speed of 6200 rpm
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
.png)
.png)
.png)
