KNC-SRV-SMH60S-0040-30AAK-3LKN
| Rated Torque (oz-in) | 179 |
|---|---|
| Rated Power (Watts) | 400 |
| Rated Speed (RPM) | 3000 |
| Max Speed (rpm) | 6000 |
| Rated Current (Arms) | 3.1 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.00722 |
| Torque Constant KT (oz-in/A) | 67 |
| Resistance (ohms) | 3.52 |
| Inductance (mH) | 7.8 |
| Length (mm) | 150 |
| Weight (lbs) | 3.97 |
Interested in large quantity discount?
Product Information

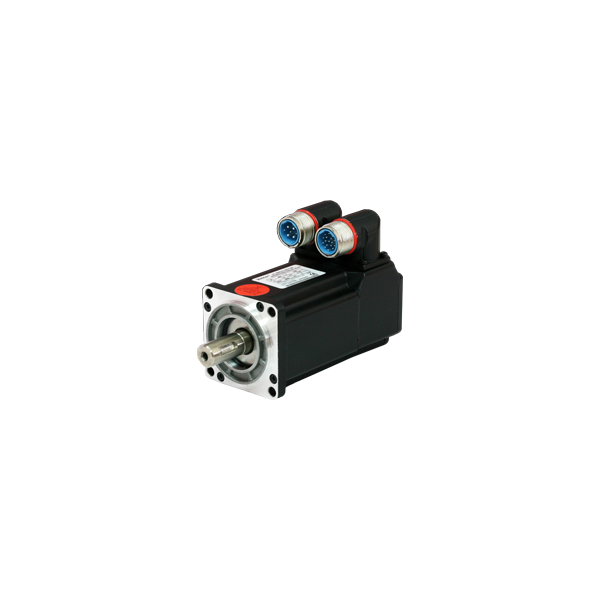

KNC-SRV-SMH60S-0040-30AAK-3LKN Servo Motors are a low-cost solution for a variety of motion control applications requiring a low-inertia design to maximize torque at high speeds. These 60mm square flange size motors boast peak torque values up to 539 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for better cushioning ability and a higher cost-performance ratio.
- 120-220 VAC Servo Motor
- 400W Power Rating
- Rated Torque of 179 oz-in
- Maximum Speed of 6200 RPM
- Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
