KNC-SRV-SMH80S-0100-30AAK-3AKH

KNC-SRV-SMH80S-0100-30AAK-3AKH

KNC-SRV-SMH80S-0100-30AAK-3LKH

KNC-SRV-SMH80S-0100-30AAK-3LKH

KNC-SRV-SMH80S-0100-30ABK-3AKH

1pc Price:
$688.00
Quantity Discount
  • Buy 10 for $663.37 each and save 4%
  • Buy 25 for $616.69 each and save 10%
  • Buy 50 for $578.15 each and save 16%
  • Buy 100 for $542.66 each and save 21%
Inventory:
More Information
Rated Torque (oz-in) 450
Rated Power (Watts) 1000
Rated Speed (RPM) 3000
Max Speed (rpm) 5500
Rated Current (Arms) 10
Voltage 120 VAC
Brake Yes
Inertia (oz-in-sec2) 0.02619
Torque Constant KT (oz-in/A) 46.87
Resistance (ohms) 0.32
Inductance (mH) 1.6
Length (mm) 217
Weight (lbs) 10.14
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

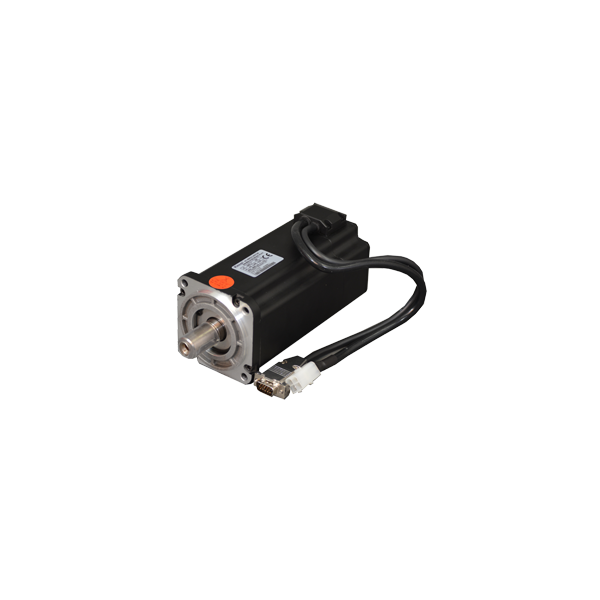

The KNC-SRV-SMH80S-0100-30ABK-3AKH Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 80mm flange size motors boast peak torque values up to 1,350 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for motor feedback.

  • 220 VAC Voltage
  • 1000 W Power Rating
  • Rated Torque of 450 oz-in
  • Maximum Speed 5500 RPM
  • 2500 PPR Incremental Encoder Attached
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • CE Certified

Spec Sheet (PDF)

Technical Specifications
