CPC-AR25 Rails
CPC-AR25 Rails | Anaheim Automation, Inc.
Information
.png)

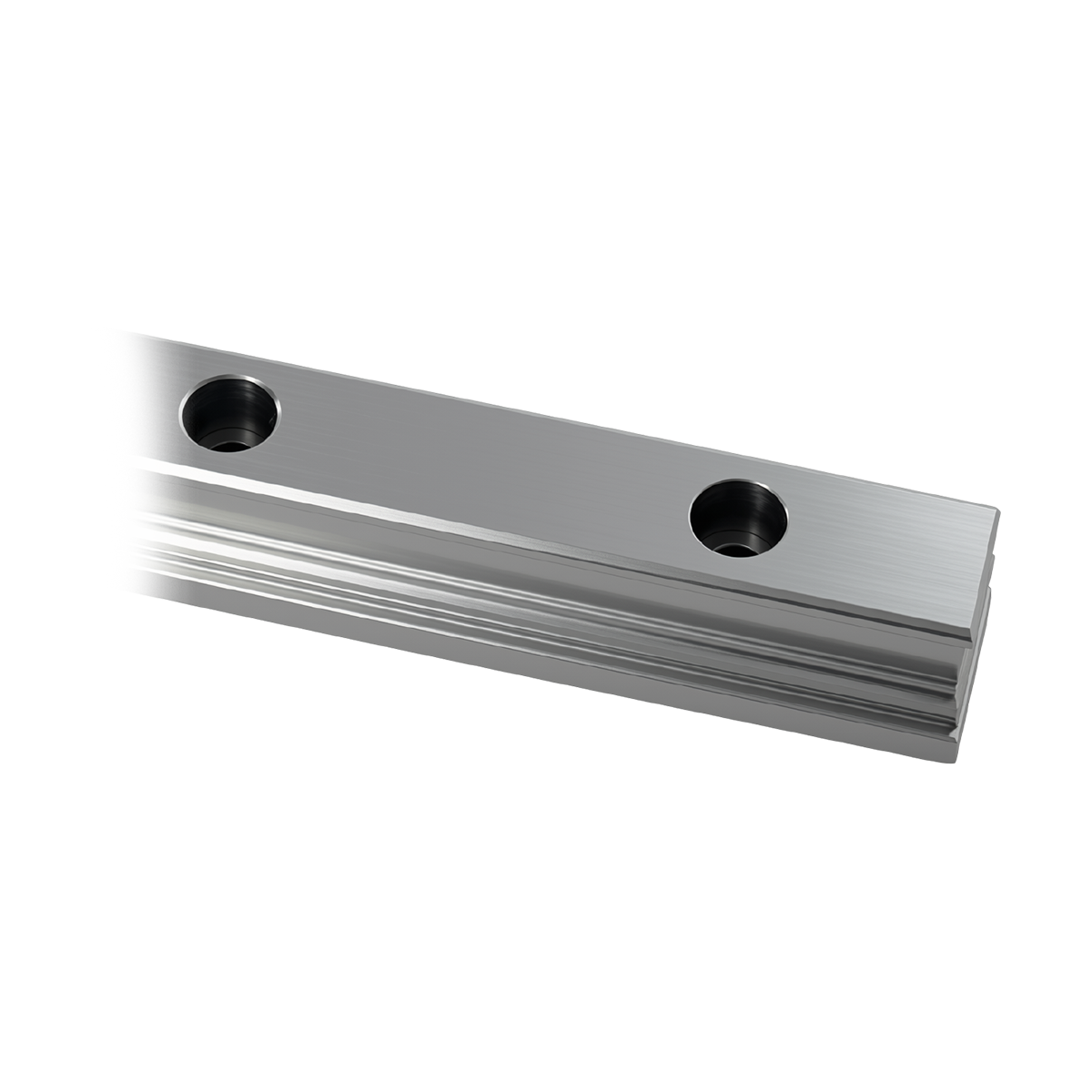

CPC-AR25N Rails are matched for CPC-xRC25 Series Blocks, and are available in custom lengths, and continuous lengths of up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 23mm
- Use with: CPC-xRC25 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

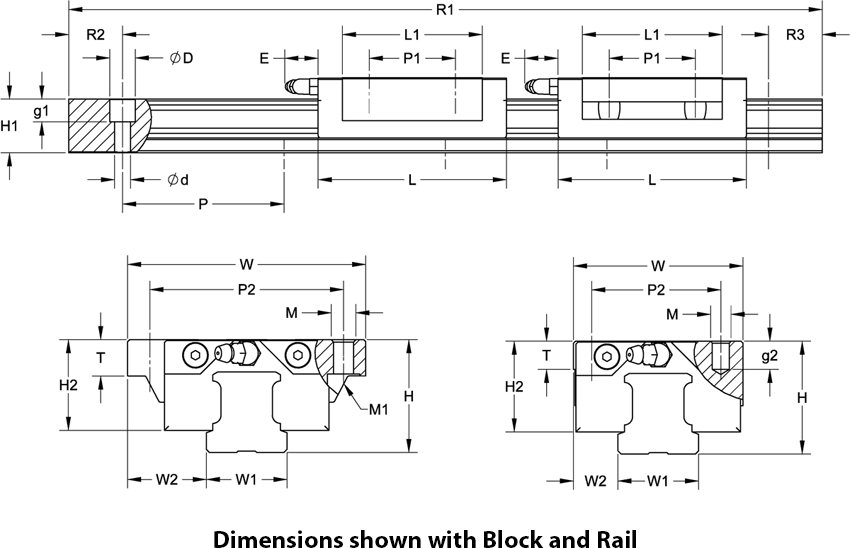

| Item | Rail Dimension (mm) | Rail Weight (lbs) | 1pc Price (USD) | Add to Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | P | D | d1 | g1 | R1 | R2 | R3 | ||||
| CPC-AR25N-4000L | 23 | 24 | 60 | 11 | 7 | 9 | 4000 | 30 | 30 | 26.64 | $479.00 | Call Us Contact Us |
| CPC-AR25N-3900-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 3900 | 30 | 30 | 25.97 | $496.00 | Call Us Contact Us |
| CPC-AR25N-3700-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 3700 | 20 | 20 | 24.64 | $467.00 | Call Us Contact Us |
| CPC-AR25N-3500-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 3500 | 10 | 10 | 23.31 | $445.00 | Call Us Contact Us |
| CPC-AR25N-3300-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 3300 | 30 | 30 | 21.98 | $424.00 | Call Us Contact Us |
| CPC-AR25N-3100-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 3100 | 20 | 20 | 20.64 | $395.00 | Call Us Contact Us |
| CPC-AR25N-2900-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 2900 | 10 | 10 | 19.31 | $373.00 | Call Us Contact Us |
| CPC-AR25N-2700-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 2700 | 30 | 30 | 17.98 | $352.00 | Call Us Contact Us |
| CPC-AR25N-2500-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 2500 | 20 | 20 | 16.65 | $323.00 | Call Us Contact Us |
| CPC-AR25N-2300-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 2300 | 10 | 10 | 15.32 | $302.00 | Call Us Contact Us |
| CPC-AR25N-2100-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 2100 | 30 | 30 | 13.99 | $280.00 | Call Us Contact Us |
| CPC-AR25N-1900-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 1900 | 20 | 20 | 12.66 | $251.00 | Call Us Contact Us |
| CPC-AR25N-1700-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 1700 | 10 | 10 | 11.32 | $230.00 | Call Us Contact Us |
| CPC-AR25N-1500-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 1500 | 30 | 30 | 9.99 | $208.00 | Call Us Contact Us |
| CPC-AR25N-1300-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 1300 | 20 | 20 | 8.66 | $180.00 | Call Us Contact Us |
| CPC-AR25N-1100-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 1100 | 10 | 10 | 7.33 | $158.00 | Call Us Contact Us |
| CPC-AR25N-0900-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 900 | 30 | 30 | 6 | $137.00 | Call Us Contact Us |
| CPC-AR25N-0700-20-20 | 23 | 24 | 60 | 11 | 7 | 9 | 700 | 20 | 20 | 4.67 | $108.00 | Call Us Contact Us |
| CPC-AR25N-0500-10-10 | 23 | 24 | 60 | 11 | 7 | 9 | 500 | 10 | 10 | 3.33 | $86.00 | Call Us Contact Us |
| CPC-AR25N-0300-30-30 | 23 | 24 | 60 | 11 | 7 | 9 | 300 | 30 | 30 | 2 | $65.00 | Call Us Contact Us |
| CPC-AR25N-0150-15-15 | 23 | 24 | 60 | 11 | 7 | 9 | 150 | 15 | 15 | 1 | $43.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
