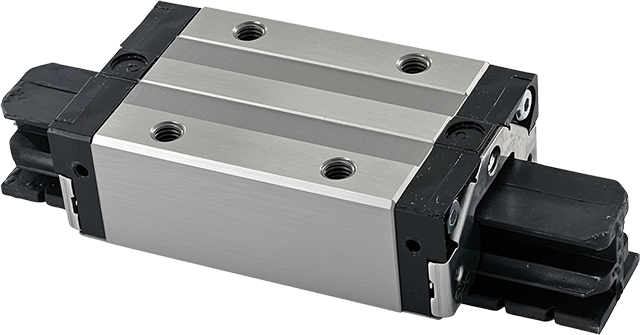

CPC-xRC25 Blocks

CPC-xRC25 Series Linear Guide Bearing Blocks are matched for the CPC-AR25N Rail. CPC-ARC25 (automation series) Blocks are ideal for dynamic loads up to 24.8 kN (5,575 lbs) and static loads up to 42.5 kN (9,554 lbs), while CPC-HRC25 (heavy load series) Blocks suit dynamic loads up to 30.7 kN (6,901 lbs) and static loads up to 57.7 kN (12,971 lbs), and CPC-HR25 Blocks suit dynamic loads up to 18.8 kN (4,226 lbs) and static loads up to 36.4 kN (8,183 lbs) . The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter and an increased number of steel balls, which provides higher load capacities. Available in three lengths, (Short, Standard, or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse. Compatible CPC-AR25N Rails are sold separately.

CPC-HR25 bearing blocks are LTSOH (Limited to Stock on Hand).

• For Rail Width: 23mm
• Block Width: 48mm, 70mm, or 73mm
• Assembly Height: 33mm, 36mm, or 40mm
• Dynamic Load: Up to 30.7kN (6,902 lb)

• Static Load: Up to 57.7kN (12,971 lb)
• Rail Lengths up to 4000mm
• Options: End Seal, Preload, Accuracy, and More
