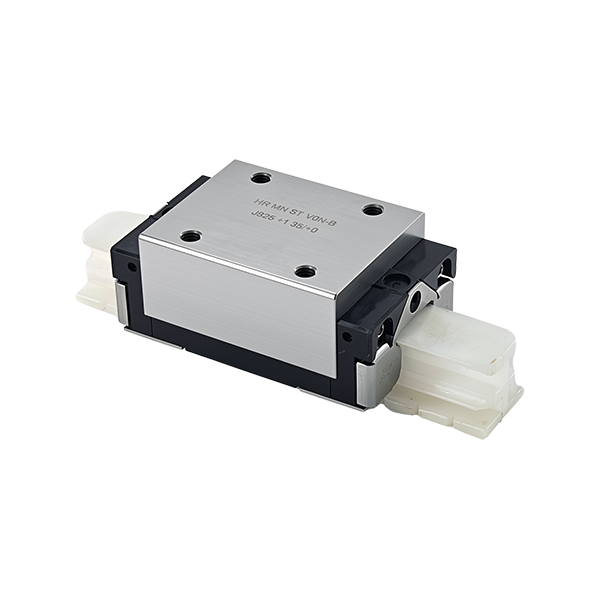

CPC-HR25MNSZV0N
| H | 40 |
|---|---|
| W2 | 12.5 |
| W | 48 |
| L | 80.2 |
| L1 | 60 |
| h2 | 33.6 |
| P1 | 35 |
| P2 | 35 |
| E | 12 |
| M x g2 | M6x9 |
| M1 | - |
| T | 10 |
| C | 18.8 |
| C0 | 36.4 |
| Mr0 | 410 |
| Mp0 | 300 |
| My0 | 300 |
| Block Weight (lbs) | 1.27 |
Interested in large quantity discount?
Product Information
The CPC-HR25 Series Linear Guide Bearing Blocks are matched for the CPC-AR25N Rail. They are ideal for dynamic loads up to 18.8 kN (4226 lbs) and static loads up to 36.4 kN (8,183 lbs). The design incorporates four rows of re-circulating steel balls arranged in the O-type design with a 45° contact angle with the raceway. The O-type design improves the rigidity of the track rail under moment and torsion forces. This series offers improved performance with larger diameter and an increased number of steel balls, which provides higher load capacities. Available in three lengths, (Short, Standard, or Long), two end seals options (Standard or Reinforced), and three preload classes (Standard, Light, or Medium). Typically in stock in our Anaheim, CA warehouse.
CPC-HR25 bearing blocks are LTSOH (Limited to Stock on Hand). Please use CPC-HRC25 series blocks for new designs.
- Size: Fits 25mm Linear Guide Rail
- Dynamic Load: 18.8kN
- Static Load: 36.4kN
- Rail Lengths Up to 4000mm
- Custom Rail Sizes Available
- Matched Bearing Blocks
- End-Seal: Reinforced with Lubrication Pad
- Pre-Load: Standard
CPC-xRC25
