CPC-AR30 Rails
CPC-AR30 Rails | Anaheim Automation, Inc.
Information
.png)

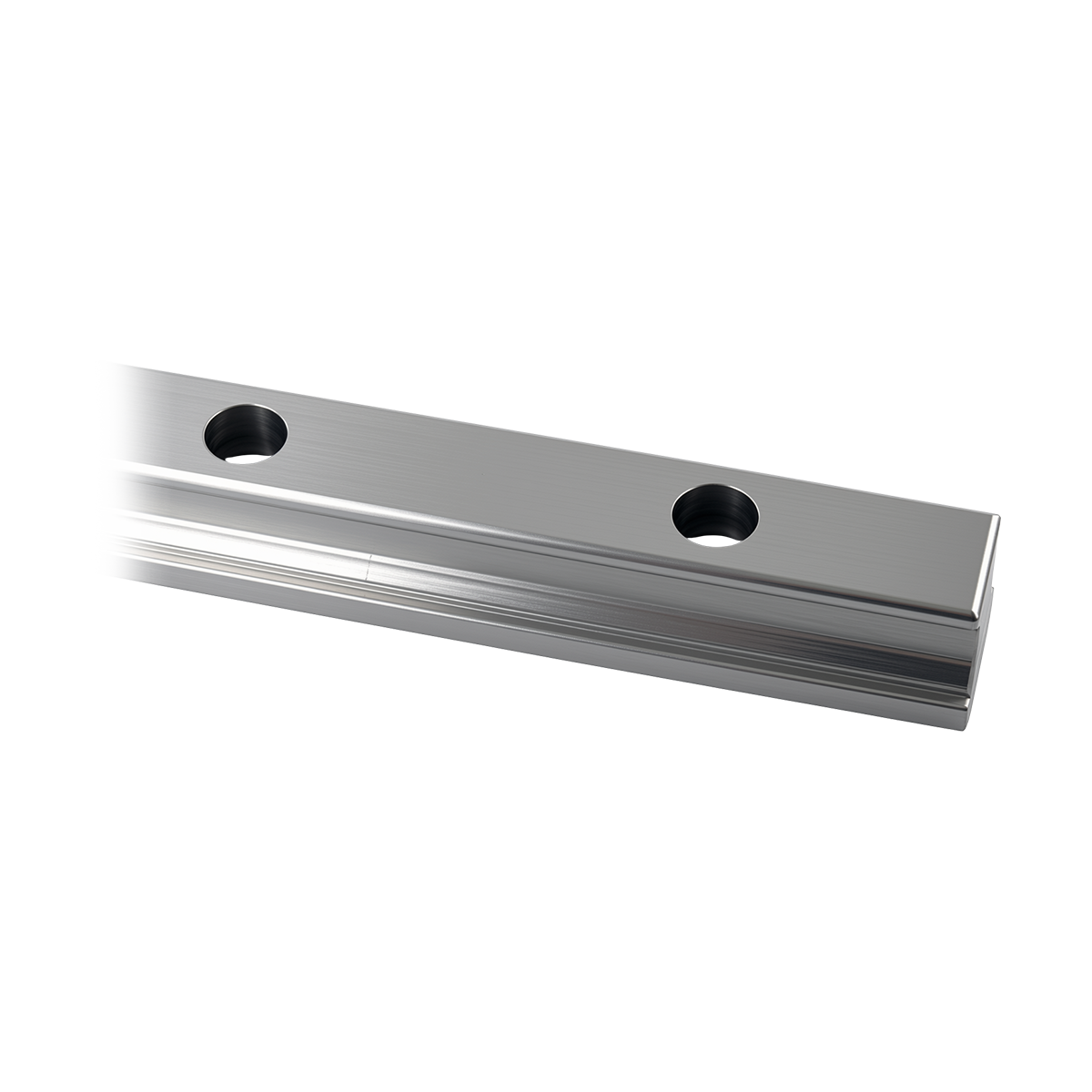

CPC-AR30N Rails are matched for CPC-xRC30 Series Blocks, and are available in custom lengths, and continuous lengths of up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 28mm
- Use with: CPC-xRC30 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

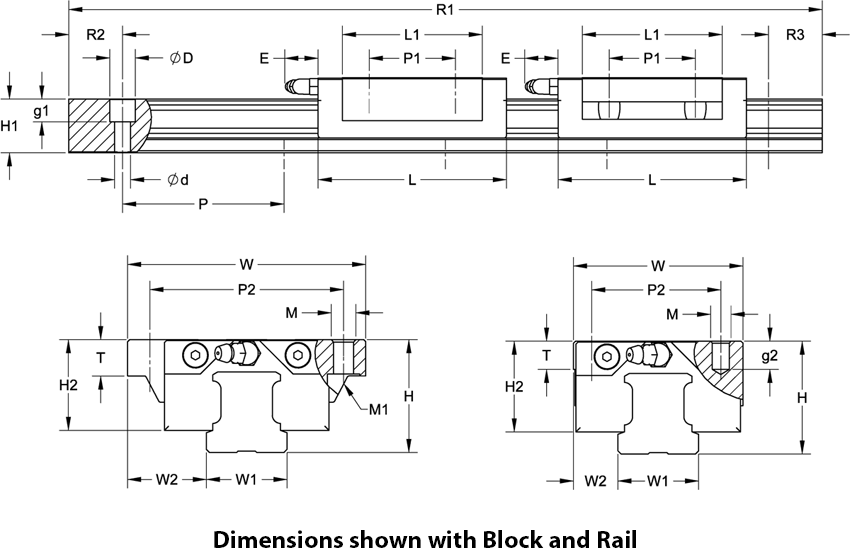

| Item | Rail Dimension (mm) | Rail Weight (lbs) | 1pc Price (USD) | Add to Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | P | D | d1 | g1 | R1 | R2 | R3 | ||||
| CPC-AR30N-4000L | 28 | 27 | 80 | 14 | 9 | 12 | 4000 | 40 | 40 | 38.63 | $613.00 | Call Us Contact Us |
| CPC-AR30N-3900-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 3900 | 30 | 30 | 37.66 | $632.00 | Call Us Contact Us |
| CPC-AR30N-3700-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 3700 | 10 | 10 | 35.73 | $608.00 | Call Us Contact Us |
| CPC-AR30N-3500-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 3500 | 30 | 30 | 33.8 | $571.00 | Call Us Contact Us |
| CPC-AR30N-3300-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 3300 | 10 | 10 | 31.87 | $547.00 | Call Us Contact Us |
| CPC-AR30N-3100-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 3100 | 30 | 30 | 29.94 | $510.00 | Call Us Contact Us |
| CPC-AR30N-2900-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 2900 | 10 | 10 | 28.01 | $485.00 | Call Us Contact Us |
| CPC-AR30N-2700-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 2700 | 30 | 30 | 26.08 | $449.00 | Call Us Contact Us |
| CPC-AR30N-2500-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 2500 | 10 | 10 | 24.15 | $424.00 | Call Us Contact Us |
| CPC-AR30N-2300-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 2300 | 10 | 10 | 22.21 | $387.00 | Call Us Contact Us |
| CPC-AR30N-2100-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 2100 | 30 | 30 | 20.28 | $363.00 | Call Us Contact Us |
| CPC-AR30N-1900-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 1900 | 30 | 30 | 18.35 | $326.00 | Call Us Contact Us |
| CPC-AR30N-1700-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 1700 | 10 | 10 | 16.42 | $302.00 | Call Us Contact Us |
| CPC-AR30N-1500-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 1500 | 30 | 30 | 14.49 | $265.00 | Call Us Contact Us |
| CPC-AR30N-1300-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 1300 | 10 | 10 | 12.56 | $240.00 | Call Us Contact Us |
| CPC-AR30N-1100-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 1100 | 30 | 30 | 10.63 | $204.00 | Call Us Contact Us |
| CPC-AR30N-0900-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 900 | 10 | 10 | 8.7 | $179.00 | Call Us Contact Us |
| CPC-AR30N-0700-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 700 | 30 | 30 | 6.76 | $142.00 | Call Us Contact Us |
| CPC-AR30N-0500-10-10 | 28 | 27 | 80 | 14 | 9 | 12 | 500 | 10 | 10 | 4.83 | $118.00 | Call Us Contact Us |
| CPC-AR30N-0300-30-30 | 28 | 27 | 80 | 14 | 9 | 12 | 300 | 30 | 30 | 2.9 | $81.00 | Call Us Contact Us |
| CPC-AR30N-0200-20-20 | 28 | 27 | 80 | 14 | 9 | 12 | 200 | 20 | 20 | 1.94 | $69.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
