CPC-AR35 Rails
CPC-AR35 Rails | Anaheim Automation, Inc.
Information
.png)
CPC-AR35N Rails are matched for CPC-xRC35 Series Blocks, and are available in custom lengths, and continuous lengths of up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Please contact us for more information.
- Rail Width: 34mm
- Use with: CPC-xRC35 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

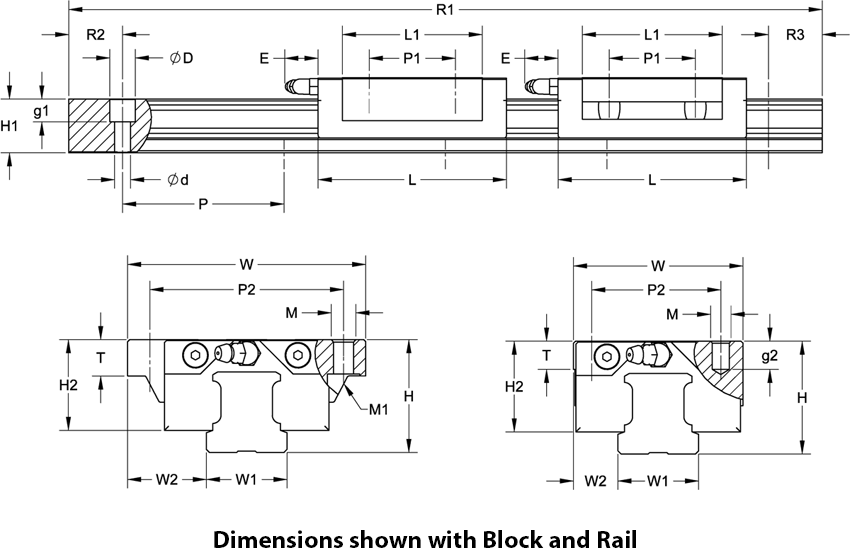

| Item | Rail Dimension (mm) | Rail Weight (lbs) | Lead Time | 1pc Price (USD) | Add to Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | P | D | d1 | g1 | R1 | R2 | R3 | |||||
| CPC-AR35N-4000L | 34 | 32 | 80 | 14 | 9 | 12 | 4000 | 40 | 40 | 59.88 | Typ 45 Days | $906.00 | Call Us Contact Us |
| CPC-AR35N-3900-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 3900 | 30 | 30 | 58.38 | Typ 45 Days | $918.00 | Call Us Contact Us |
| CPC-AR35N-3700-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 3700 | 10 | 10 | 55.39 | Typ 45 Days | $882.00 | Call Us Contact Us |
| CPC-AR35N-3500-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 3500 | 30 | 30 | 52.4 | Typ 45 Days | $827.00 | Call Us Contact Us |
| CPC-AR35N-3300-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 3300 | 10 | 10 | 49.4 | Typ 45 Days | $791.00 | Call Us Contact Us |
| CPC-AR35N-3100-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 3100 | 30 | 30 | 46.41 | Typ 45 Days | $737.00 | Call Us Contact Us |
| CPC-AR35N-2900-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 2900 | 10 | 10 | 43.41 | Typ 45 Days | $701.00 | Call Us Contact Us |
| CPC-AR35N-2700-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 2700 | 30 | 30 | 40.42 | Typ 45 Days | $646.00 | Call Us Contact Us |
| CPC-AR35N-2500-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 2500 | 10 | 10 | 37.43 | Typ 45 Days | $610.00 | Call Us Contact Us |
| CPC-AR35N-2300-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 2300 | 30 | 30 | 34.43 | Typ 45 Days | $556.00 | Call Us Contact Us |
| CPC-AR35N-2100-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 2100 | 10 | 10 | 31.44 | Typ 45 Days | $520.00 | Call Us Contact Us |
| CPC-AR35N-1900-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 1900 | 30 | 30 | 28.44 | Typ 45 Days | $465.00 | Call Us Contact Us |
| CPC-AR35N-1700-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 1700 | 10 | 10 | 25.45 | Typ 45 Days | $429.00 | Call Us Contact Us |
| CPC-AR35N-1500-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 1500 | 30 | 30 | 22.46 | Typ 45 Days | $375.00 | Call Us Contact Us |
| CPC-AR35N-1300-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 1300 | 10 | 10 | 19.46 | Typ 45 Days | $338.00 | Call Us Contact Us |
| CPC-AR35N-1100-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 1100 | 30 | 30 | 16.47 | Typ 45 Days | $284.00 | Call Us Contact Us |
| CPC-AR35N-0900-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 900 | 10 | 10 | 13.47 | Typ 45 Days | $248.00 | Call Us Contact Us |
| CPC-AR35N-0700-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 700 | 30 | 30 | 10.48 | Typ 45 Days | $194.00 | Call Us Contact Us |
| CPC-AR35N-0500-10-10 | 34 | 32 | 80 | 14 | 9 | 12 | 500 | 10 | 10 | 7.49 | Typ 45 Days | $157.00 | Call Us Contact Us |
| CPC-AR35N-0300-30-30 | 34 | 32 | 80 | 14 | 9 | 12 | 300 | 30 | 30 | 4.49 | Typ 45 Days | $103.00 | Call Us Contact Us |
| CPC-AR35N-0250-5-5 | 34 | 32 | 80 | 14 | 9 | 12 | 250 | 5 | 5 | 3.74 | Typ 45 Days | $103.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
