CPC-AR45 Rails
CPC-AR45 Rails | Anaheim Automation, Inc.
Information
.png)

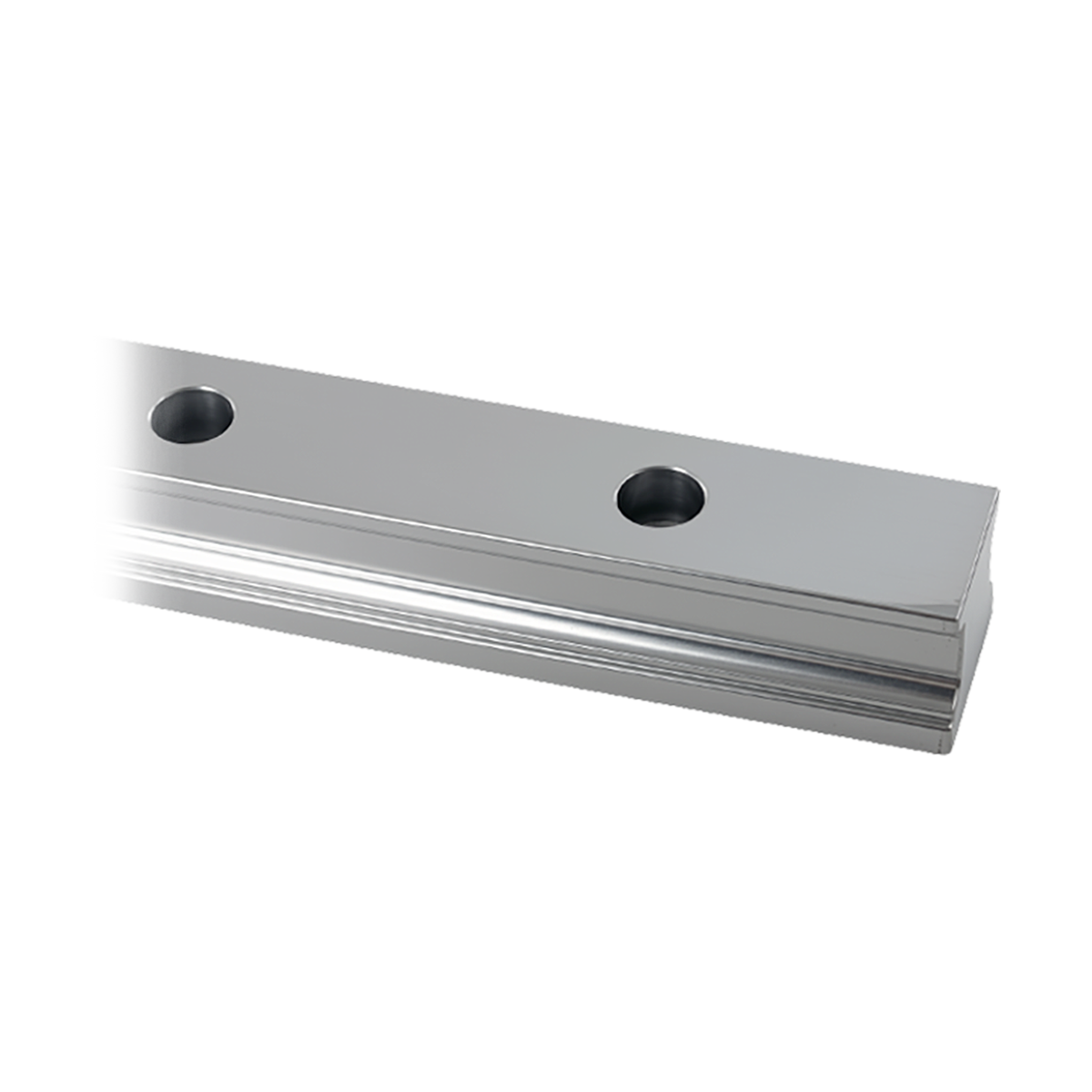

CPC-AR45N Rails are matched for CPC-xRC45 Series Blocks, and are available in custom lengths, and continuous lengths of up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information. Please contact us for more information.
- Rail Width: 45mm
- Use with: CPC-xRC45 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

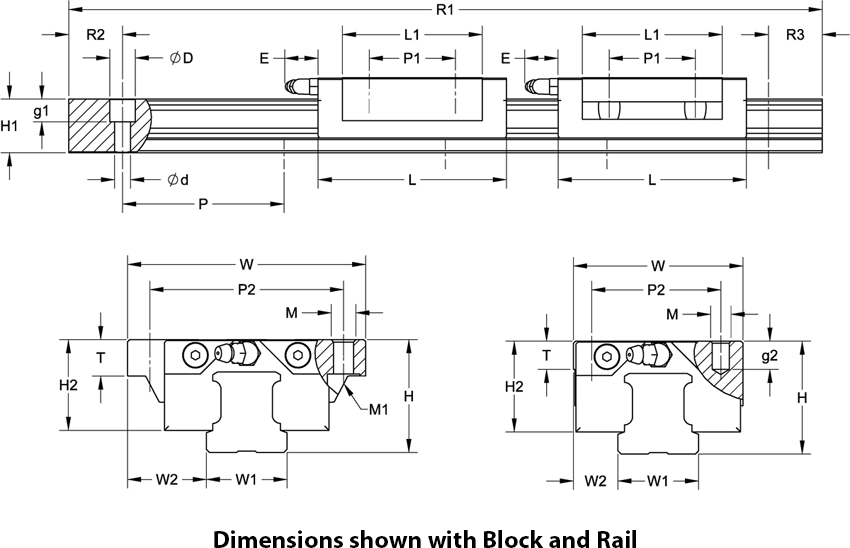

| Item | Rail Dimension (mm) | Rail Weight (lbs) | 1pc Price (USD) | Add to Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1 | H1 | P | D | d1 | g1 | R1 | R2 | R3 | ||||
| CPC-AR45N-4000L | 45 | 39 | 105 | 20 | 14 | 17 | 4000 | 52 | 52 | 92.86 | $1,005.00 | Call Us Contact Us |
| CPC-AR45N-3900-7.5-7.5 | 45 | 39 | 105 | 20 | 14 | 17 | 3900 | 7.5 | 7.5 | 90.53 | $1,034.00 | Call Us Contact Us |
| CPC-AR45N-3700-12.5-12.5 | 45 | 39 | 105 | 20 | 14 | 17 | 3700 | 12.5 | 12.5 | 85.9 | $982.00 | Call Us Contact Us |
| CPC-AR45N-3500-17.5-17.5 | 45 | 39 | 105 | 20 | 14 | 17 | 3500 | 17.5 | 17.5 | 81.25 | $929.00 | Call Us Contact Us |
| CPC-AR45N-3300-22.5-22.5 | 45 | 39 | 105 | 20 | 14 | 17 | 3300 | 22.5 | 22.5 | 76.61 | $876.00 | Call Us Contact Us |
| CPC-AR45N-3100-27.5-27.5 | 45 | 39 | 105 | 20 | 14 | 17 | 3100 | 27.5 | 27.5 | 71.97 | $823.00 | Call Us Contact Us |
| CPC-AR45N-2900-32.5-32.5 | 45 | 39 | 105 | 20 | 14 | 17 | 2900 | 32.5 | 32.5 | 67.32 | $771.00 | Call Us Contact Us |
| CPC-AR45N-2700-37.5-37.5 | 45 | 39 | 105 | 20 | 14 | 17 | 2700 | 37.5 | 37.5 | 62.68 | $718.00 | Call Us Contact Us |
| CPC-AR45N-2500-42.5-42.5 | 45 | 39 | 105 | 20 | 14 | 17 | 2500 | 42.5 | 42.5 | 58.04 | $665.00 | Call Us Contact Us |
| CPC-AR45N-2300-47.5-47.5 | 45 | 39 | 105 | 20 | 14 | 17 | 2300 | 47.5 | 47.5 | 53.39 | $612.00 | Call Us Contact Us |
| CPC-AR45N-2100-52.5-52.5 | 45 | 39 | 105 | 20 | 14 | 17 | 2100 | 52.5 | 52.5 | 48.75 | $586.00 | Call Us Contact Us |
| CPC-AR45N-1900-5-5 | 45 | 39 | 105 | 20 | 14 | 17 | 1900 | 5 | 5 | 44.11 | $533.00 | Call Us Contact Us |
| CPC-AR45N-1700-10-10 | 45 | 39 | 105 | 20 | 14 | 17 | 1700 | 10 | 10 | 39.47 | $481.00 | Call Us Contact Us |
| CPC-AR45N-1500-15-15 | 45 | 39 | 105 | 20 | 14 | 17 | 1500 | 15 | 15 | 34.82 | $428.00 | Call Us Contact Us |
| CPC-AR45N-1300-20-20 | 45 | 39 | 105 | 20 | 14 | 17 | 1300 | 20 | 20 | 30.18 | $375.00 | Call Us Contact Us |
| CPC-AR45N-1100-25-25 | 45 | 39 | 105 | 20 | 14 | 17 | 1100 | 25 | 25 | 25.54 | $322.00 | Call Us Contact Us |
| CPC-AR45N-0900-30-30 | 45 | 39 | 105 | 20 | 14 | 17 | 900 | 30 | 30 | 20.89 | $270.00 | Call Us Contact Us |
| CPC-AR45N-0700-35-35 | 45 | 39 | 105 | 20 | 14 | 17 | 700 | 35 | 35 | 16.25 | $217.00 | Call Us Contact Us |
| CPC-AR45N-0500-40-40 | 45 | 39 | 105 | 20 | 14 | 17 | 500 | 40 | 40 | 11.61 | $164.00 | Call Us Contact Us |
| CPC-AR45N-0300-45-45 | 45 | 39 | 105 | 20 | 14 | 17 | 300 | 45 | 45 | 6.96 | $111.00 | Call Us Contact Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
