TBI-TR35 Rails
TBI-TR35 Rails | Anaheim Automation, Inc.
Information
.png)

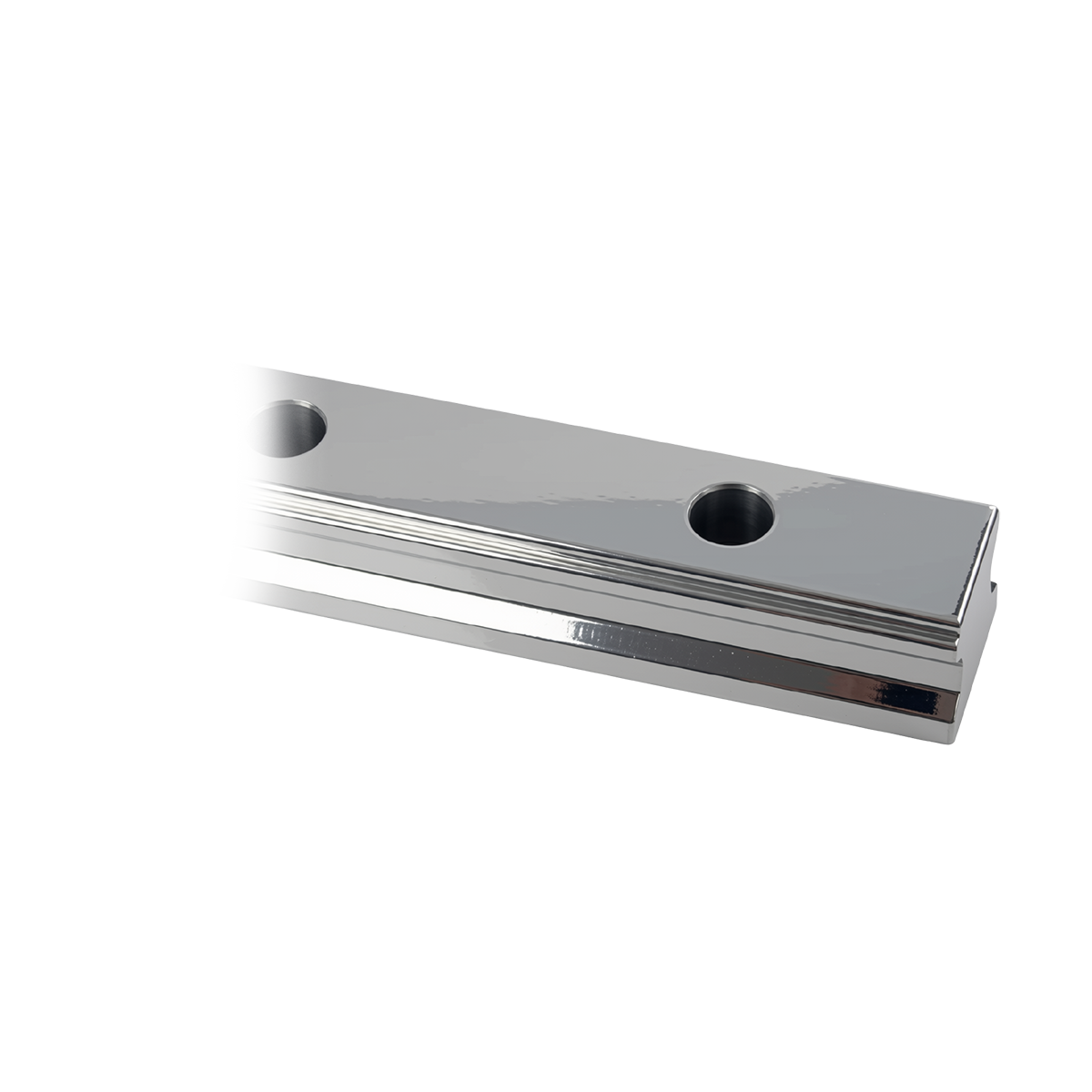

TBI-TR35 Rails are matched for TBI-TRx35 Blocks, and are offered in standard or custom lengths, with a continuous rail length up to 4000mm. For rail lengths longer than the full continuous length specification, rails can be butt-jointed to achieve the desired length. Please contact us for more information.
- Rail Width: 34mm
- Use with: TBI-TRx35 Blocks
- Custom Rail Lengths Available
- Continuous Rail Lengths up to 4000mm

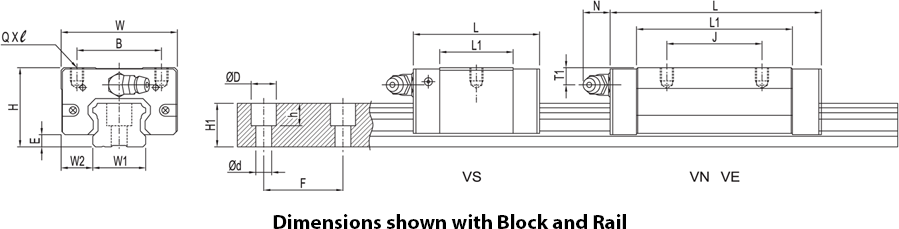

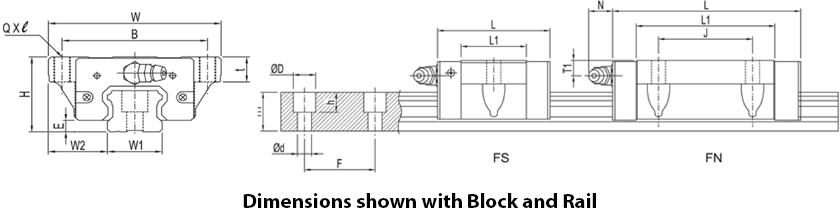

| Item | Rail Dimension (mm) | Rail Weight (lbs) | Price (USD) | Add to Cart | ||||
|---|---|---|---|---|---|---|---|---|
| W1 | H1 | F | d x D x h | Rail Length | ||||
| TBI-TR35N-4000L | 34 | 26 | 80 | 9 x 14 x 12 | 4000 | 55.3 | N/A | Call Us |
| TBI-TR35N-3900-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 3900 | 53.91 | N/A | Call Us |
| TBI-TR35N-3700-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 3700 | 51.15 | N/A | Call Us |
| TBI-TR35N-3500-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 3500 | 48.39 | N/A | Call Us |
| TBI-TR35N-3300-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 3300 | 45.62 | N/A | Call Us |
| TBI-TR35N-3100-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 3100 | 42.86 | N/A | Call Us |
| TBI-TR35N-2900-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 2900 | 40.09 | N/A | Call Us |
| TBI-TR35N-2700-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 2700 | 37.33 | N/A | Call Us |
| TBI-TR35N-2500-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 2500 | 34.56 | N/A | Call Us |
| TBI-TR35N-2300-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 2300 | 31.8 | N/A | Call Us |
| TBI-TR35N-2100-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 2100 | 29.03 | N/A | Call Us |
| TBI-TR35N-1900-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 1900 | 26.27 | N/A | Call Us |
| TBI-TR35N-1700-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 1700 | 23.5 | N/A | Call Us |
| TBI-TR35N-1500-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 1500 | 20.74 | N/A | Call Us |
| TBI-TR35N-1300-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 1300 | 17.97 | N/A | Call Us |
| TBI-TR35N-1100-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 1100 | 15.21 | N/A | Call Us |
| TBI-TR35N-0900-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 900 | 12.45 | N/A | Call Us |
| TBI-TR35N-0700-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 700 | 9.68 | N/A | Call Us |
| TBI-TR35N-0500-10-10 | 34 | 26 | 80 | 9 x 14 x 12 | 500 | 6.92 | N/A | Call Us |
| TBI-TR35N-0300-30-30 | 34 | 26 | 80 | 9 x 14 x 12 | 300 | 4.15 | N/A | Call Us |
| TBI-TR35N-0250-45-45 | 34 | 26 | 80 | 9 x 14 x 12 | 250 | 3.46 | N/A | Call Us |
*Rail lengths larger than 2400mm require additional shipping charges and are not available for purchase online. Please contact our sales department to place an order.
