TBI Linear Guides

Information

Anaheim Automation offers a broad range of TBI Linear Guides in Linear Rail widths ranging from 15mm to 65mm.

  • Rail Sizes: 15mm - 65mm
  • Dynamic Load: Up to 273.6kN
  • Static Load: Up to 419.04kN
  • Standard Rail Lengths: 100mm - 4,000mm
  • Preload Classes: Light, Standard, & Medium
  • End-Seal Options: Standard and Reinforced
  • Bearing Block Options: Standard & Wide
  • Custom-Cut Rail Lengths Available

Featured Series

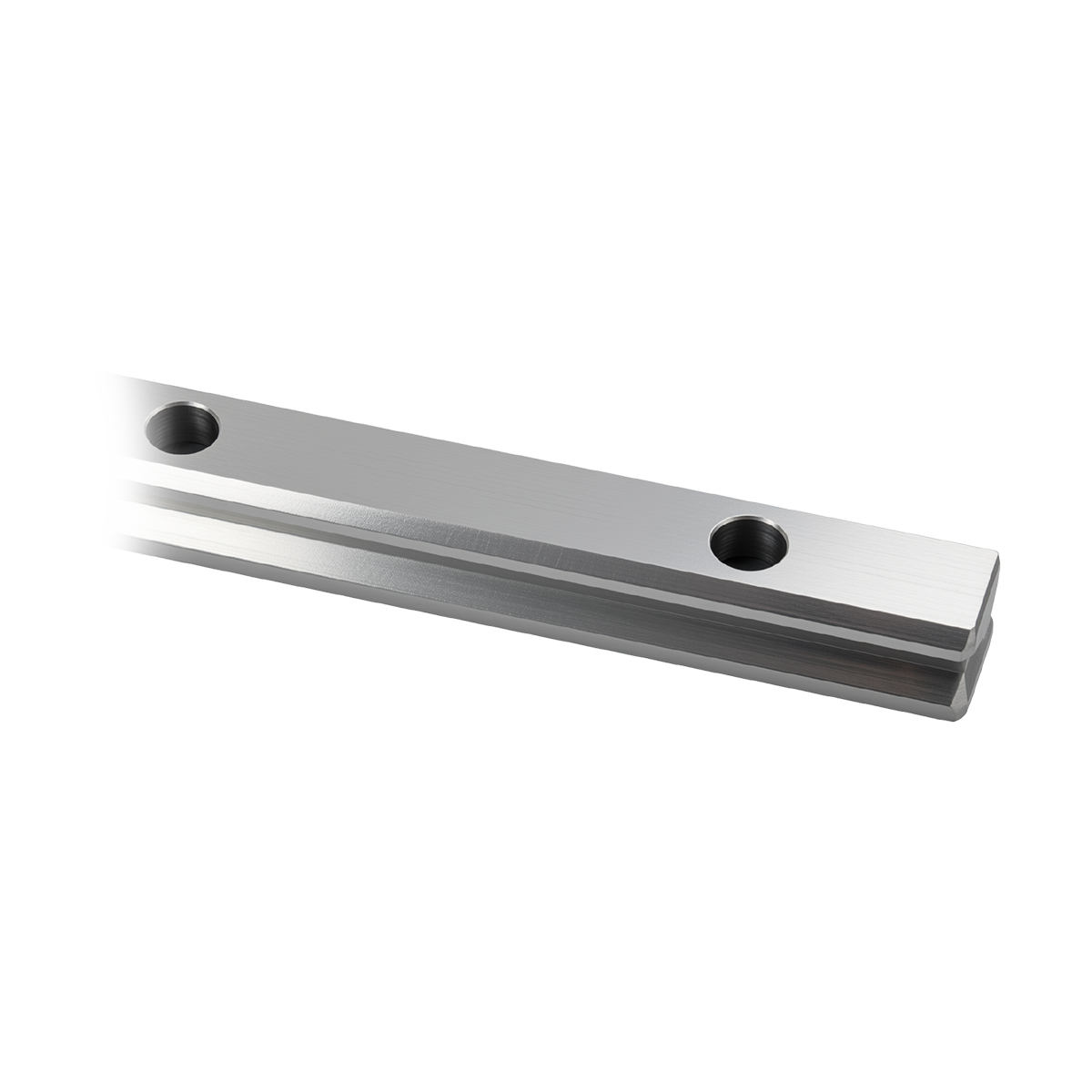

TBI-TR15 Rails

TBI-TR15 Rails

  • Rail Width: 15mm
  • Use with: TBI-TRx15 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

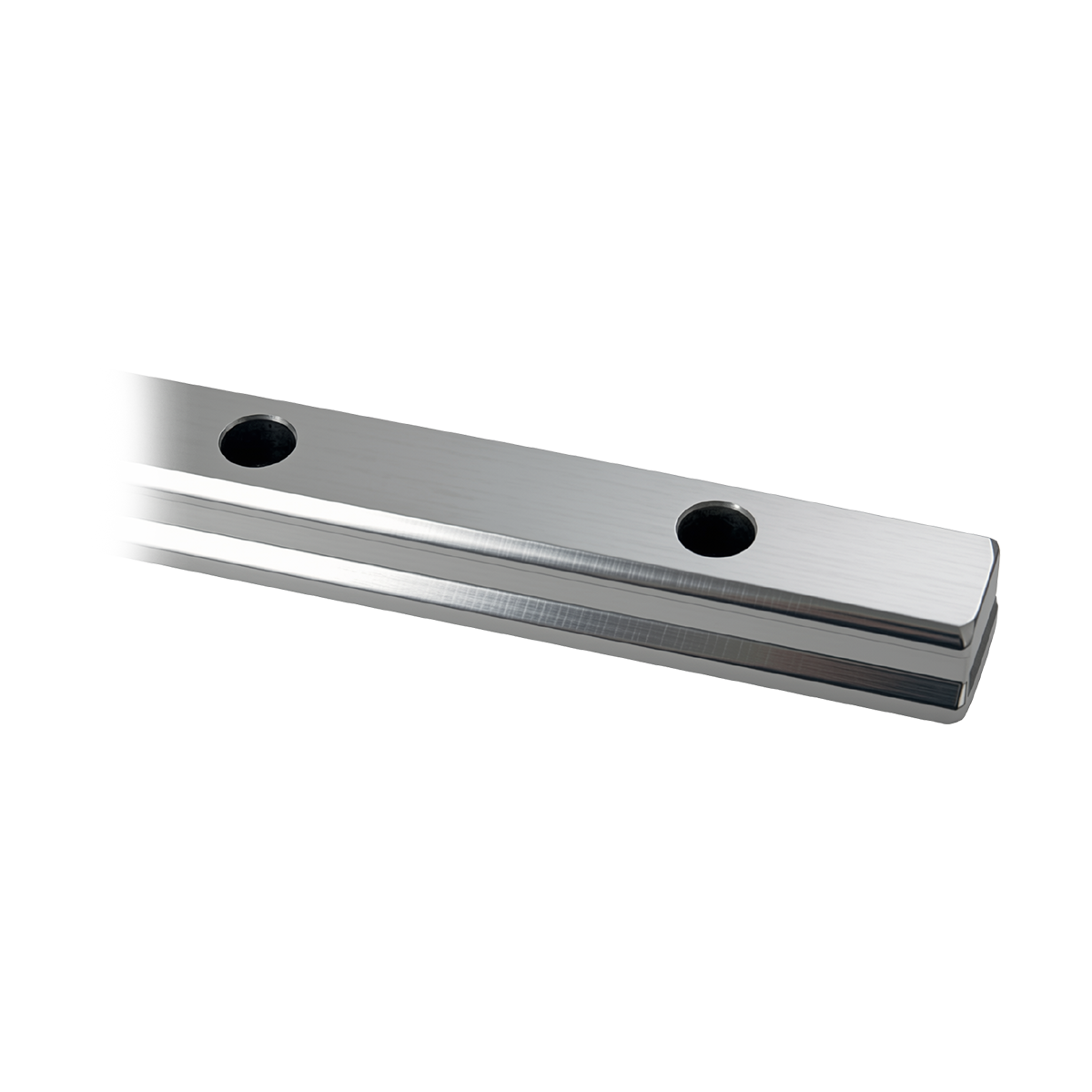

TBI-TR20 Rails

TBI-TR20 Rails

  • Rail Width: 20mm
  • Use with: TBI-TRx20 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

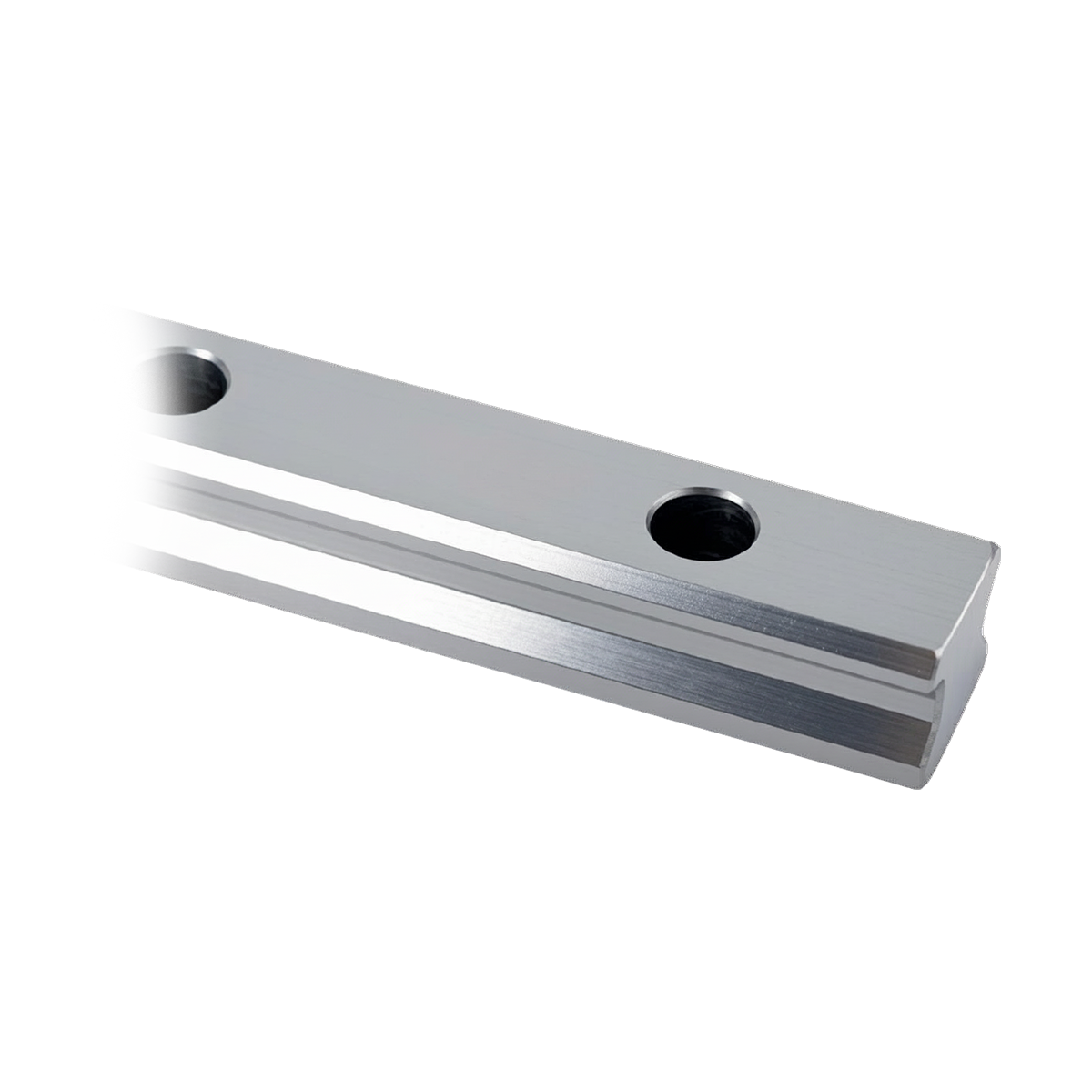

TBI-TR25 Rails

TBI-TR25 Rails

  • Rail Width: 23mm
  • Use with: TBI-TRx25 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
TBI-TR30 Rails

TBI-TR30 Rails

  • Rail Width: 28mm
  • Use with: TBI-TRx30 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
TBI-TR35 Rails

TBI-TR35 Rails

  • Rail Width: 34mm
  • Use with: TBI-TRx35 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

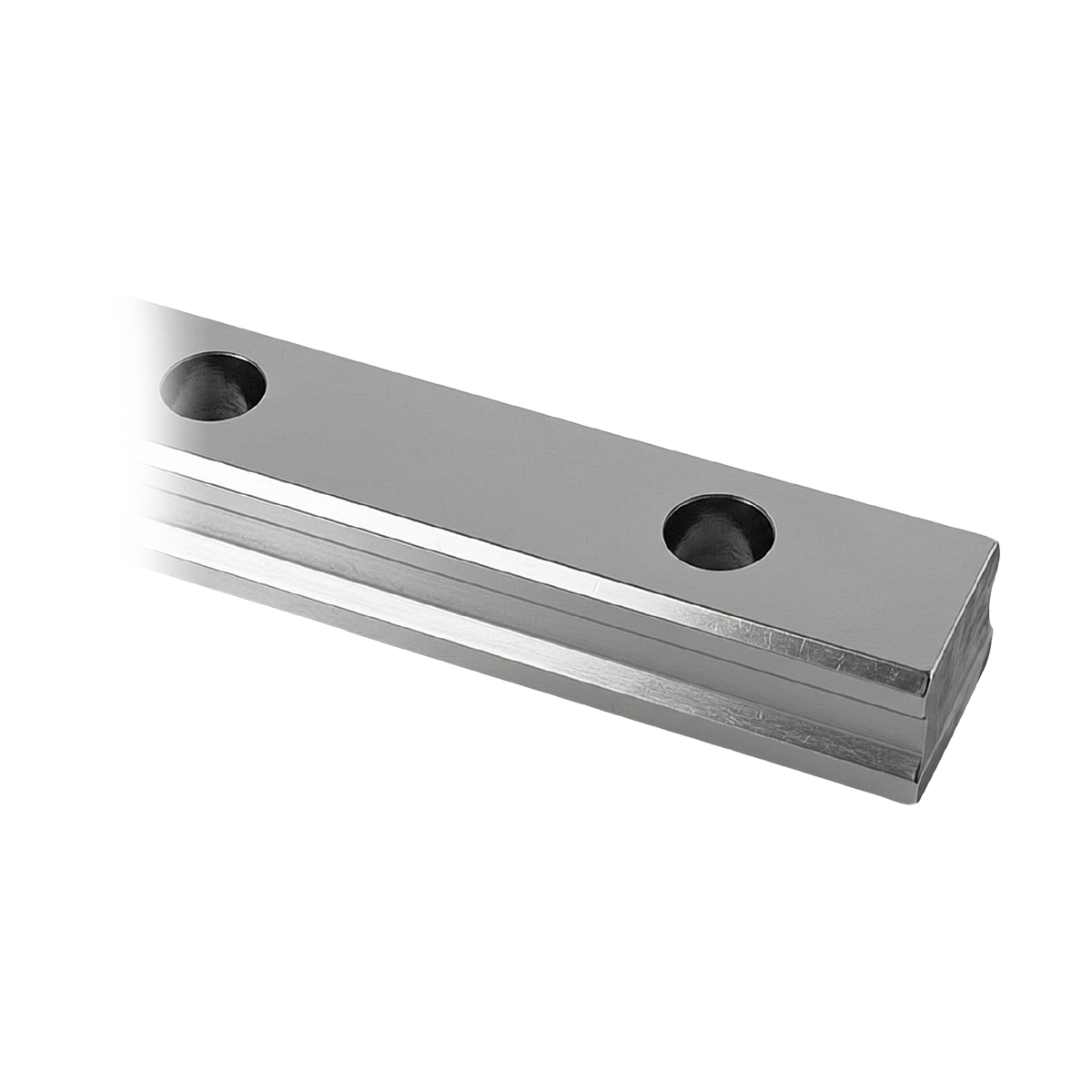

TBI-TR45 Rails

TBI-TR45 Rails

  • Rail Width: 45mm
  • Use with: TBI-TRx45 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

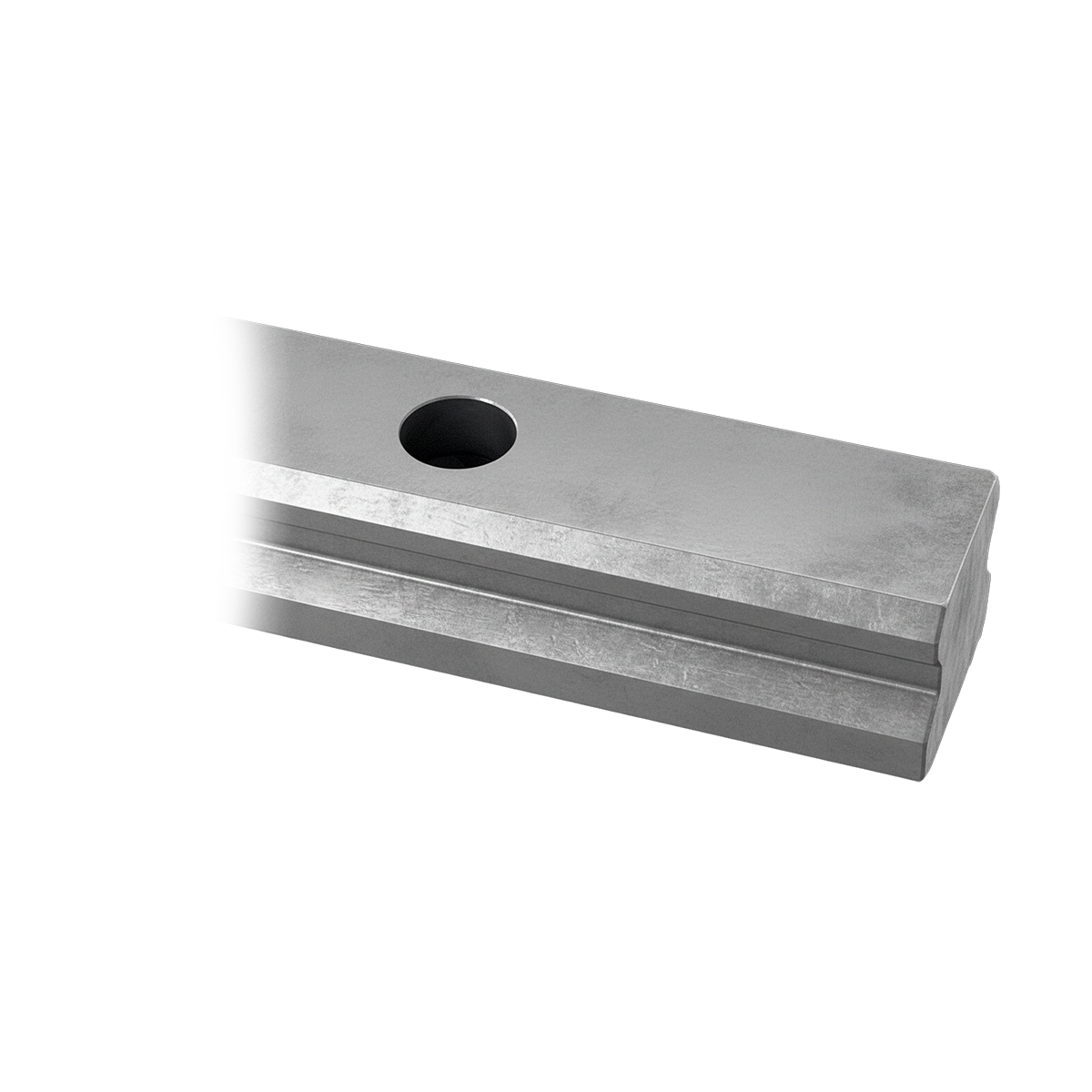

TBI-TR55 Rails

TBI-TR55 Rails

  • Rail Width: 53mm
  • Use with: TBI-TRx55 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm
TBI-TR65 Rails

TBI-TR65 Rails

  • Rail Width: 63mm
  • Use with: TBI-TRx65 Blocks (Sold Separately)
  • Custom Rail Lengths Available
  • Continuous Rail Lengths up to 4000mm

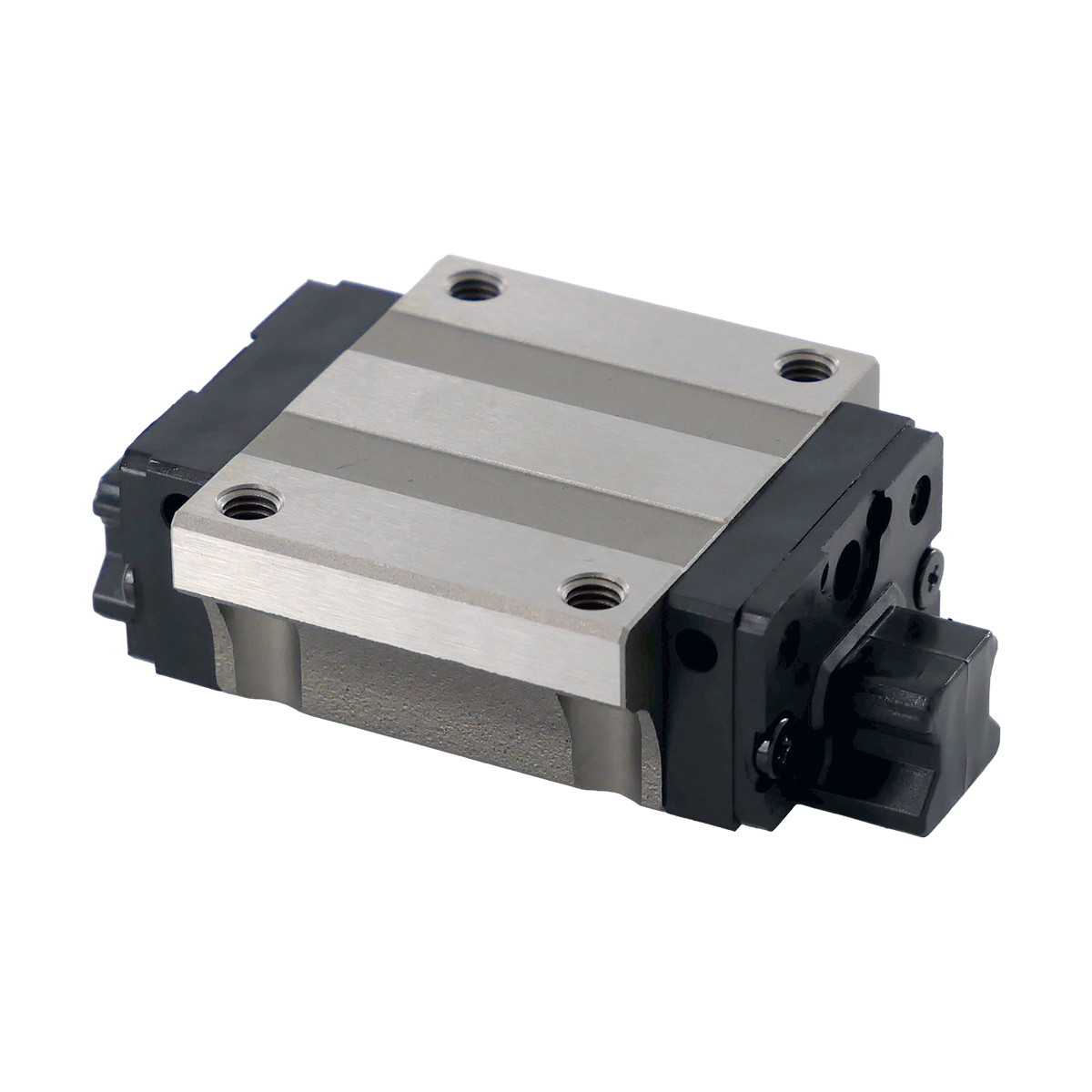

TBI-TRx15 Blocks

TBI-TRx15 Blocks

  • For Rail Width: 15mm
  • Block Width: 34, 47 or 52mm
  • Assembly Height: 24mm
  • Dynamic Load: Up to 2,944 lbs (13.1 kN)
  • Static Load: Up to 5,665 lbs (25.2 kN)
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
TBI-TRx20 Blocks

TBI-TRx20 Blocks

  • For Rail Width: 20mm
  • Block Width: 42, 44, 59 or 63mm
  • Assembly Height: 28 or 30mm
  • Dynamic Load: Up to 5,620 lbs (25 kN)
  • Static Load: Up to 11,150 lbs (49.6 kN)
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More

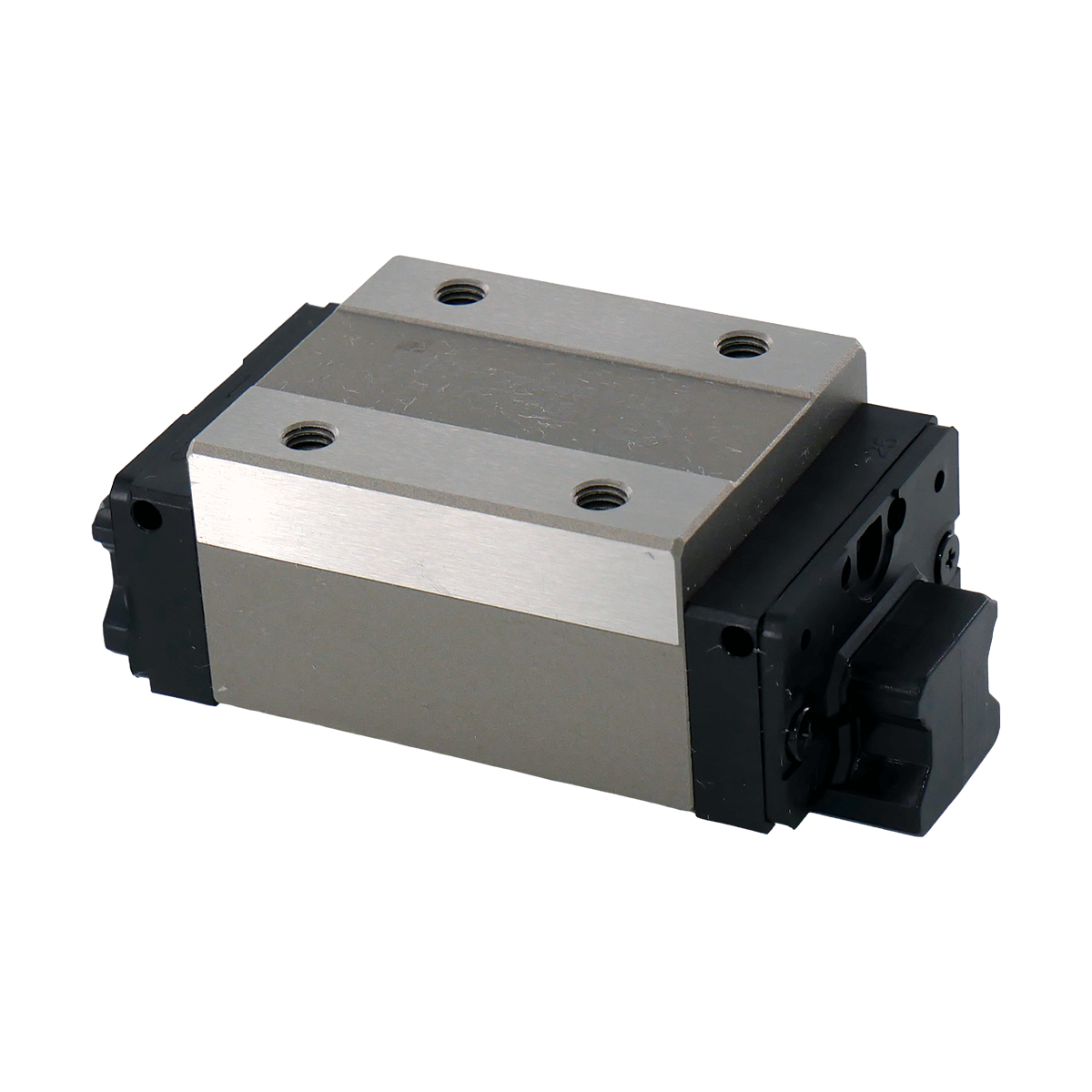

TBI-TRx25 Blocks

TBI-TRx25 Blocks

  • For Rail Width: 23mm
  • Block Width: 48, 70 or 73mm
  • Assembly Height: 33, 36 or 40mm
  • Dynamic Load: Up to 31.9 kN (7,171 lbs)
  • Static Load: Up to 61.3 kN (13,780 lbs)
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
TBI-TRx30 Blocks

TBI-TRx30 Blocks

  • For Rail Width: 28mm
  • Block Width: 60 or 90mm
  • Assembly Height: 42 or 45mm
  • Dynamic Load: Up to 10,566 lbs (47 kN)
  • Static Load: Up to 19,850 lbs (88.3 kN)
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More

Items 1 to 12 of 16 total

Page
Show per page
These Linear Guides can tolerate dynamic loads up to 61,500 lbs and static loads up to 94,200 lbs. Rails are stocked in lengths of up to 4 meters and can be purchased in a range of standard pre-cut lengths of 100mm and up. Rails can also be cut in-house to a custom length based on your specifications. Matched Linear Bearing Blocks are available in "standard" and "wide" widths, with a variety of end-seal and pre-load options to choose from.

Note: For assistance with making a selection, please contact our representatives to discuss your application requirements.
