TBI-TRx30 Blocks

TBI-TRx30 Blocks | Anaheim Automation, Inc.

Information

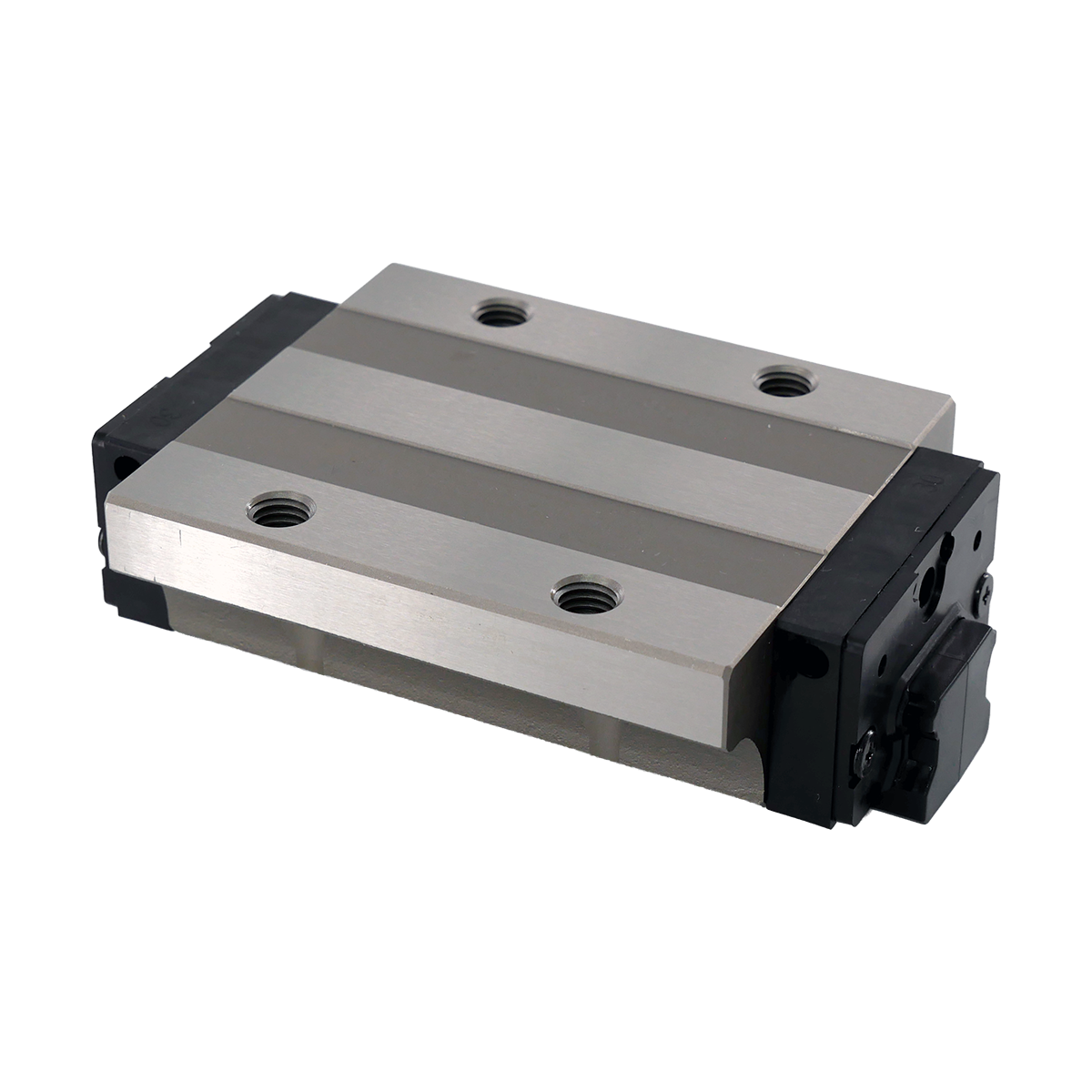

TBI's high-quality linear guides deliver precision, durability, and affordability in one single package. TBI-TRx30 Blocks are matched for the 28mm size TBI-TR30 Rail series. Low friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. TBI-TRH30 (high-assembly) Blocks are ideal for dynamic loads up to 46.98 kN and static loads up to 88.29 kN, while TBI-TRS30 (low-assembly) Blocks are suited for dynamic loads up to 37.33 kN and static loads up to 63.57 kN. All standard blocks come with a bottom seal and double lip end seals, and are typically in stock in Anaheim, CA. Compatible TBI-TR30 Rails are sold separately.

  • For Rail Width: 28mm
  • Block Width: 60-90mm
  • Assembly Height: 42-45mm
  • Dynamic Load: Up to 46.98 kN
  • Static Load: Up to 88.29 kN
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
Item Fabrication DimensionBlock Dimension (mm)Load Capacities (kN)Static Moment (Nm) 1pc Price (USD) Add to Cart

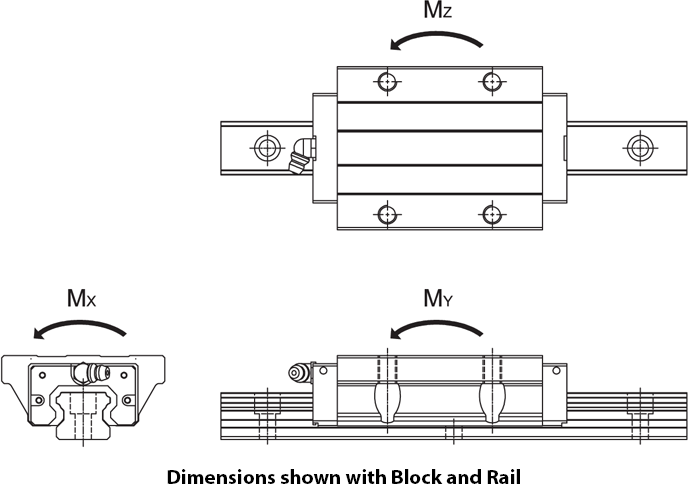

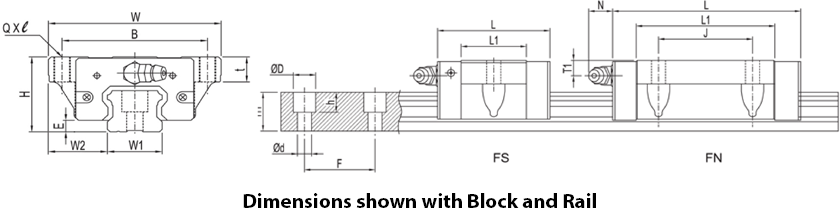

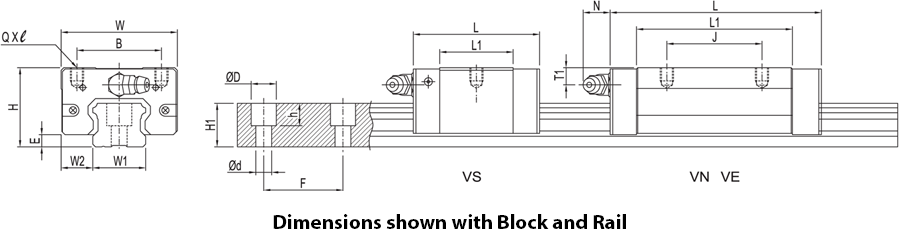

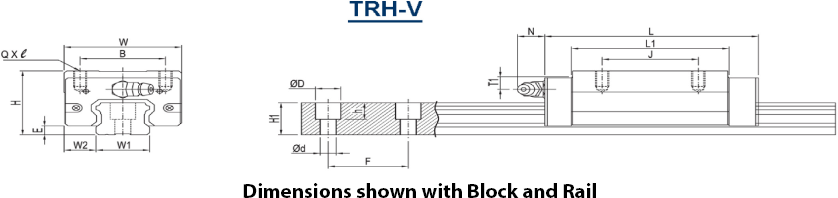

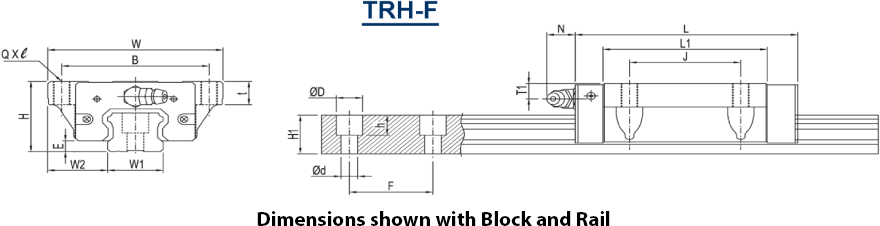

H W2 E W B J L L1 QxL N T C C0 Mx My Mz
Sort by Name TBI-TRH30FN-N-Z0 H 42 W2 31 E 7 W 90 B 72 J 52 L 96.3 L1 69.3 QxL M10x5 N 14 T 15 C 37.3 C0 63.5 Mx 889.68 My 735.2 Mz 735.2 1pc Price (USD) $90.00
Sort by Name TBI-TRH30VN-N-Z0 H 45 W2 16 E 7 W 60 B 40 J 40 L 96.3 L1 69.3 QxL M8x10 N 14 T 11 C 37.3 C0 63.5 Mx 889.68 My 735.2 Mz 735.2 1pc Price (USD) $77.00
Sort by Name TBI-TRH30FE-N-Z0 H 42 W2 31 E 7 W 90 B 72 J 52 L 132 L1 105 QxL M10x15 N 14 T 8 C 47 C0 88.3 Mx 1235.66 My 1441.57 Mz 1441.57 1pc Price (USD) $135.00
Sort by Name TBI-TRH30VE-N-Z0 H 45 W2 16 E 7 W 60 B 40 J 60 L 132 L1 105 QxL M8x10 N 14 T 11 C 47 C0 88.3 Mx 1235.66 My 1441.57 Mz 1441.57 1pc Price (USD) $115.00
Sort by Name TBI-TRS30VS-N-Z0 H 42 W2 16 E 7 W 60 B 40 J N/A L 67.4 L1 40.4 QxL M8x8 N 14 T 8 C 26.4 C0 38.9 Mx 543.7 My 264.11 Mz 264.29 1pc Price (USD) $75.00
Sort by Name TBI-TRS30VN-N-Z0 H 42 W2 16 E 7 W 60 B 40 J 40 L 96.3 L1 69.3 QxL M8x8 N 14 T 8 C 37.3 C0 63.6 Mx 889.67 My 735.2 Mz 735.2 1pc Price (USD) $74.00
