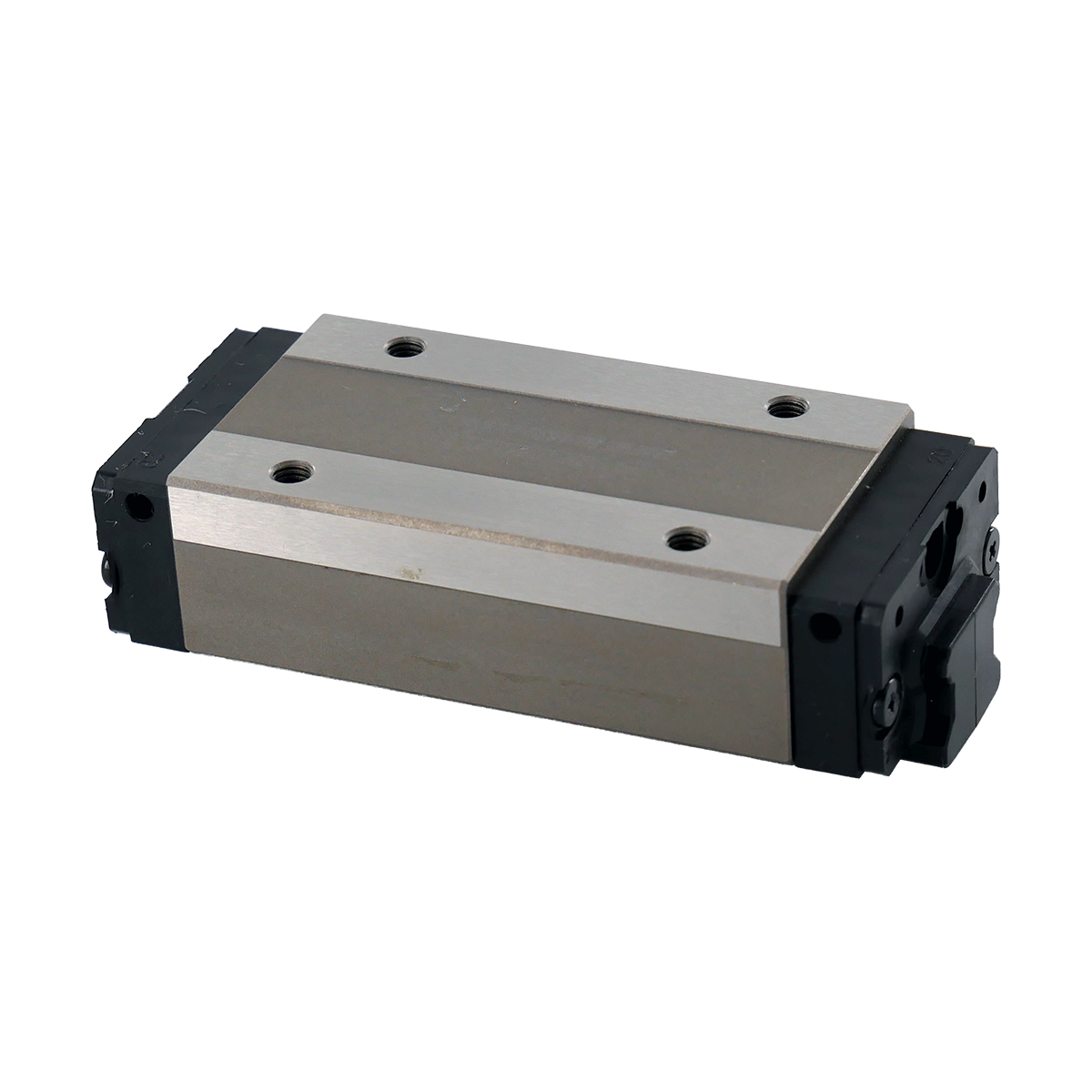

TBI-TRx20 Blocks | Anaheim Automation, Inc.

TBI's high-quality linear guides deliver precision, durability, and affordability in one single package. TBI-TRx20 Blocks are matched for the 20mm size TBI-TR20 Rail series. Low friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. TBI-TRH20 (high-assembly) Blocks are ideal for dynamic loads up to 25.03 kN and static loads up to 49.6 kN, while TBI-TRS20 (low-assembly) Blocks are suited for dynamic loads up to 18.59 kN and static loads up to 32.43 kN. All standard blocks come with a bottom seal and double lip end seals, and are typically in stock in Anaheim, CA. Compatible TBI-TR20 Rails are sold separately.

• For Rail Width: 20mm
• Block Width: 42-63mm
• Assembly Height: 28-30mm
• Dynamic Load: Up to 25.03 kN
• Static Load: Up to 49.6 kN
• Rail Lengths up to 4000mm
• Options: End Seal, Preload, Accuracy, and More
