TBI's high-quality linear guides deliver precision, durability, and affordability in one single package. TBI-TRx45 Blocks are matched for the 45mm size TBI-TR45 Rail series. Low friction resistance allows for high accuracy and speed, while several preload options are available for increased rigidity and performance. TBI-TRH45 (high-assembly) Blocks are ideal for dynamic loads up to 86.8 kN and static loads up to 157 kN, while TBI-TRS45 (low-assembly) Blocks are suited for dynamic loads up to 66.27 kN and static loads up to 106.76 kN. All standard blocks come with a bottom seal and double lip end seals, and are typically in stock in Anaheim, CA. Compatible TBI-TR45 Rails are sold separately.

  • For Rail Width: 45mm
  • Block Width: 86mm
  • Assembly Height: 60-70mm
  • Dynamic Load: Up to 86.8 kN
  • Static Load: Up to 157 kN
  • Rail Lengths up to 4000mm
  • Options: End Seal, Preload, Accuracy, and More
Item Fabrication DimensionBlock Dimension (mm)Load Capacities (kN)Static Moment (Nm) Price (USD) Add to Cart

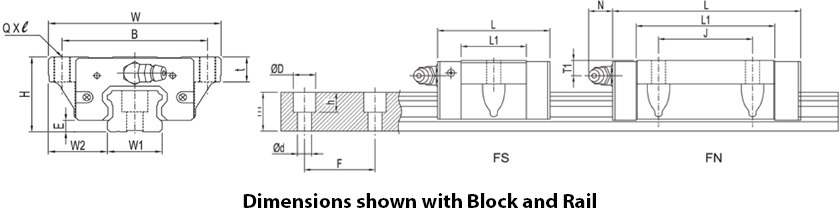

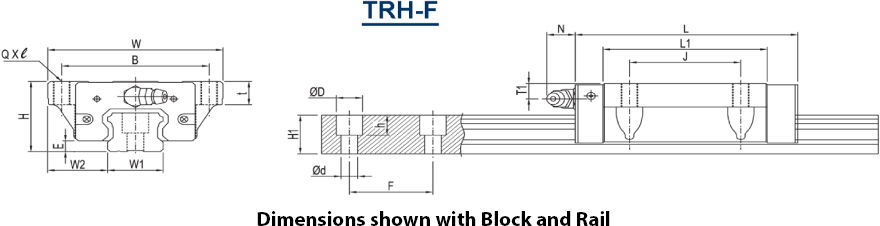

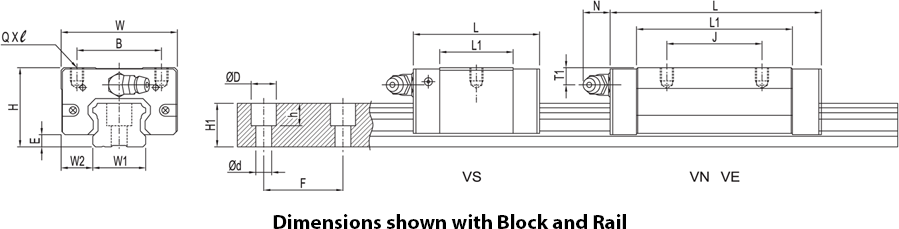

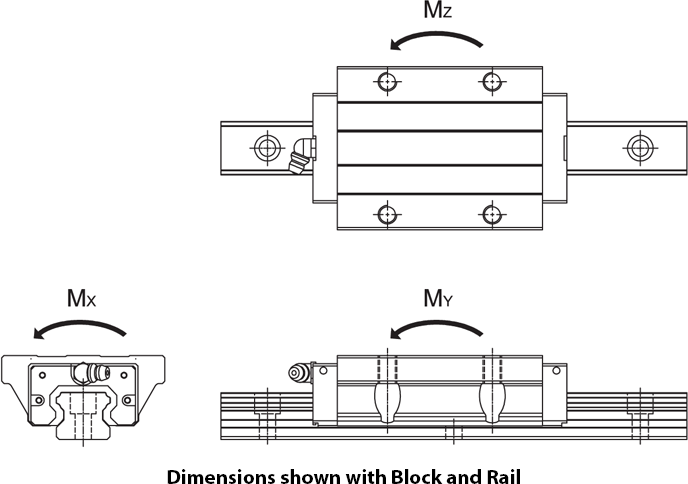

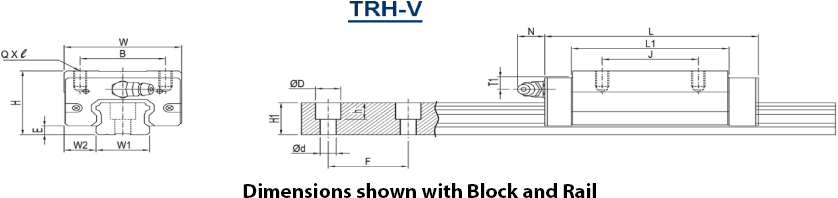

H W2 E W B J L L1 QxL N T C C0 Mx My Mz

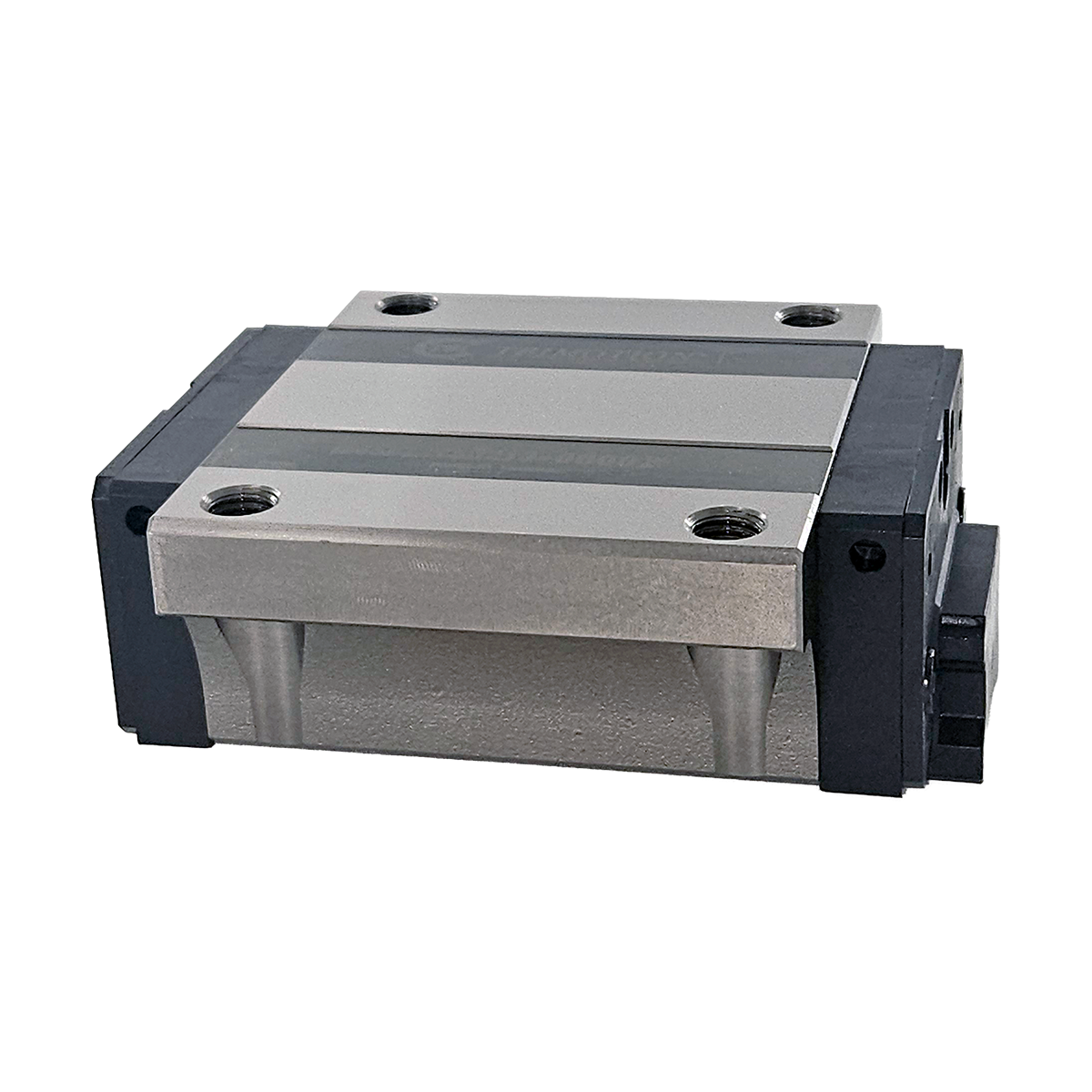

Sort by Name TBI-TRH45FE-N-Z0 H 60 W2 37.5 E 8.9 W 120 B 100 J 80 L 174 L1 140 QxL M12x18 N 12.5 T 18 C 86.8 C0 157 Mx 3587.48 My 3418.15 Mz 3418.15 N/A Call Us
Sort by Name TBI-TRH45FL-N-Z0 H 60 W2 37.5 E 8.9 W 120 B 100 J 80 L 140 L1 106 QxL M12x18 N 12.5 T 18 C 74.2 C0 125.6 Mx 2869.98 My 2164.83 Mz 2164.83 Price (USD) $232.00
Sort by Name TBI-TRH45VE-N-Z0 H 70 W2 20.5 E 8.9 W 86 B 60 J 80 L 174 L1 140 QxL M10x15 N 12.5 T 20.5 C 86.8 C0 157 Mx 3587.48 My 3418.14 Mz 3418.14 Price (USD) $287.00
Sort by Name TBI-TRS45VN-N-Z0 H 60 W2 20.5 E 8.9 W 86 B 60 J 60 L 124.5 L1 90.5 QxL M10x15 N 12.5 T 10.5 C 66.3 C0 106.8 Mx 2439.48 My 1549.56 Mz 1549.56 Price (USD) $180.00
