LS100-12-H-B-4M-B

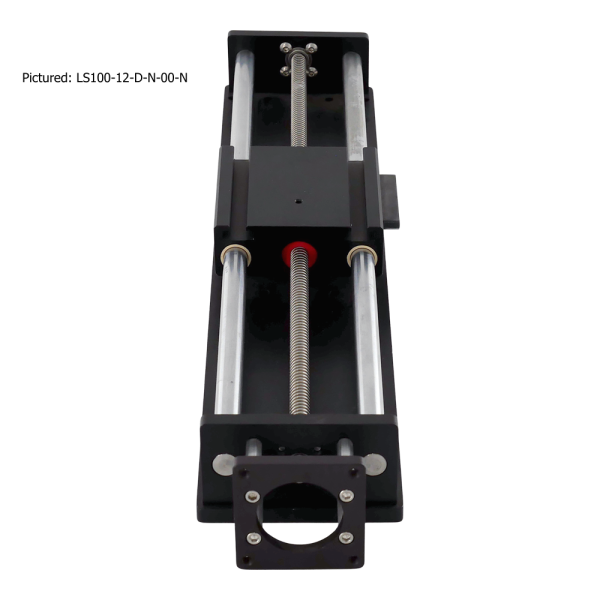

The LS100 Series Linear Stages are designed to provide accurate precision while minimizing physical size and cost. These tables use a low friction, preloaded stainless steel ACME lead screw, twin railed linear system. Choose from among three ACME screw lead options, providing solutions for typical industrial applications. Ideal for light applications, the LS100 is perfect for applications less than 20 pounds, accuracy within 0.003", and speed ranges up to 10 inches per second. The LS100 Series Linear Stage is an economical package with a low-cost base price (includes a basic 6-inch travel with no options) designed and built in the USA! LS100 tables are available in 6, 12, and 18 inch travel options, x and xy configurations, and as close-loop or open-loop assemblies (with or without encoders). Other options include homing and end limit switch options, a brake, and a variety of stepper motor options, some with integrated drivers and controllers. Please refer to the LS100 Ordering Information below to view all assembly options.

Lead time varies depending on motor stock. Tables purchased without a motor are typically 3 days.
Contact Customer Service for specific lead time information.

• Travel Options: 6, 12 or 18 Inches
• Accuracy: 0.003"/ft
• Speed: Up to 10 in/sec
• Unsupported Rails, Low-Profile Design
• Light Duty Applications, Up to 20 lbs.
• Motor and Encoder and Cable Options
• Build Part Number to your Requirements
• One and two-axis configurations (see Ordering Information for full part number)
