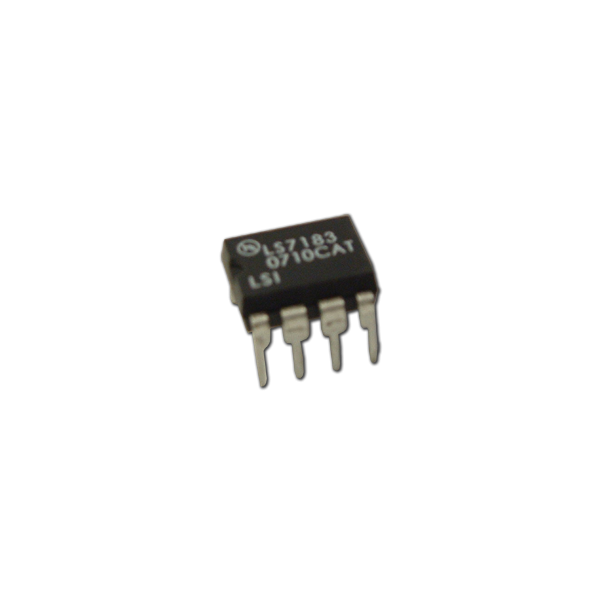

LSI-LS7183N-S
| Package Type | SOIC |
|---|---|
| Pin Count | 8 |
Interested in large quantity discount?
Product Information
The LS7183N and LS7184N are CMOS quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7183N/LS7184N, are converted to strings of Up Clocks and Down Clocks (LS7183N) or to a Clock and an Up/Down direction control (LS7184N). These outputs can be interfaced directly with standard Up/Down counters for direction and position. This series has a minimum purchase requirement of 10 pieces, regardless of stock.
- x1, x2 and x4 Resolution
- Programmable Output Clock Pulse Width
- Excellent Regulation of Output Pulse Width
- TTL and CMOS Compatible I/Os
- +3V to +12V Operation (Vdd - Vss)
- RoHS Compliant
