MBC10SI1

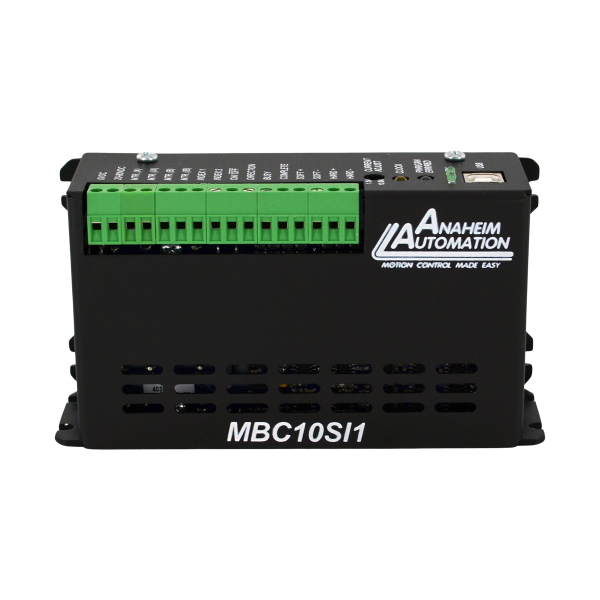

The MBC10SI1 is a low-cost, single-axis step motor driver integrated with a programmable simple indexer. The MBC10SI1 microstep driver/pulse generator has an output current capability of 1.5A minimum to 10.0A maximum (peak rating). The MBC10SI1 driver operates with a DC voltage of 20VDC to 80VDC. The MBC10SI1’s internal controller has two different programmable motion profiles. The MBC10SI1 also has directional soft and hard limit switch inputs, a busy output and a complete output letting the user know when an inded is finished. The MBC10SI1 driver features direction control and motor current On/Off capabilities. The “Reduce Current Enabled” feature automatically reduces motor current to 50% of the set value. The driver has built in features to indicate power on (green LED), running (yellow LED) and error conditions (red LED). The MBC10SI1 has a fixed step resolution of 2000 steps/revolution for a 1.8° stepper motor. The bipolar drive configuration handles 4, 6, and 8 lead step motors and is also equipped with over current protection. The MBC10SI1 communicates via USB communication. The easy-to-use Windows software, SMPG-SMSI Software, is used to directly set up the two different motion profiles.

• Output Current: 10.0A Peak
• 2000 Steps/Revolution
• On-Board Programmable Simple Indexer with Two Motion Profiles
• Pulses from 1Hz to 50kHz
• Directional Soft and Hard Limit Switch Inputs
• Complete Output
• Busy Output
• Motor On/Off Input and Automatic Current Reduction
• Short Circuit Protection
