MBC12101
| Current Range (A) | 1.5 - 10.0 |
|---|---|
| Voltage Requirement | 20 - 80 VDC |
| Steps per Revolution | 2000 |
| Pulse Generator / Controller | - |
| Power Supply | PSA80V4A-1 |
Interested in large quantity discount?
Product Information

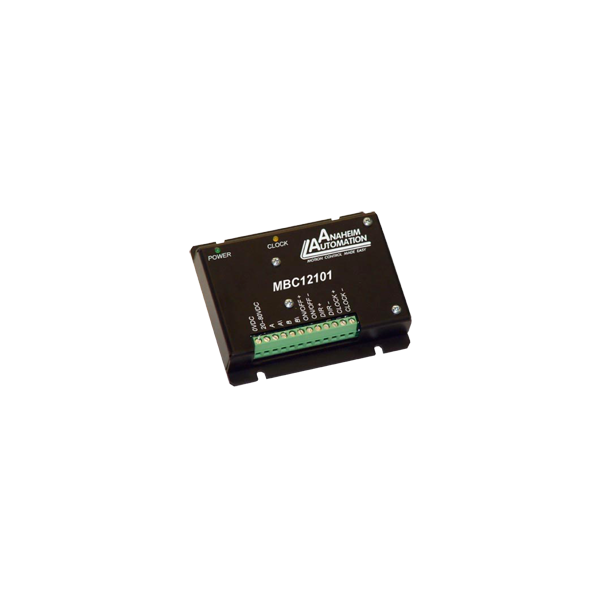

The MBC12101 features optically isolated inputs that are 3.5 - 8.6VDC compatible. This powerful microstepping driver provides excellent torque in a compact and low profile enclosure. The MBC12101 is also very easy to use. It features rugged terminal blocks, a rotary pot for current settings, and a visible silkscreen for easy installation. The MBC12101 is "fixed" at 2,000 steps per revolution, making it an affordable choice. A power supply is required and can be purchased separately. (See ORDERING INFORMATION)
See Accessories on this website for driver adders, such as shielded motor cables, connectors, and power supply options. For compatible high torque stepper motors, consider our popular 23Y, 24Y, 34Y and 42Y series. For standard torque (round-bodied motors), see 23W series.
- Compact Stepper Motor Driver
- 1.5-10.0 Amp Current Range
- 2000 Steps per Revolution
- Optically Isolated Inputs
- Short Circuit Protection
- 20-80VDC Bus Voltage
- Automatic Current Reduction
- Sinking and Sourcing Inputs
- Power and Clock LEDs
- CE Certified and RoHS Compliant
