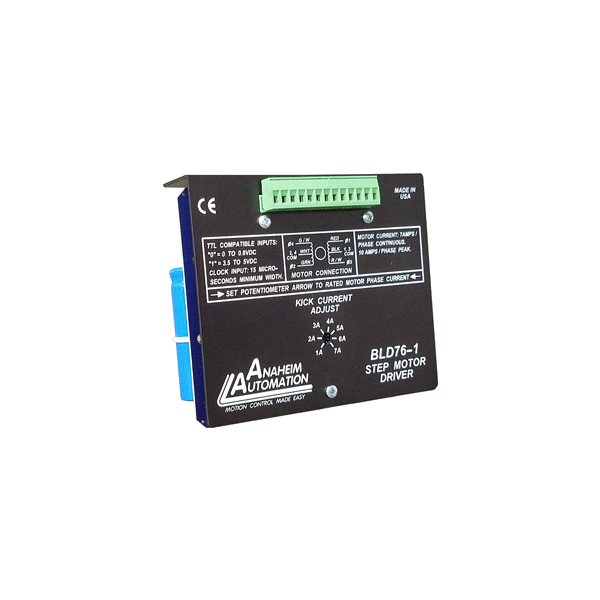

BLD76-1

1pc Price:
$246.00
Quantity Discount
  • Buy 10 for $211.48 each and save 14%
  • Buy 25 for $186.60 each and save 24%
  • Buy 50 for $168.06 each and save 32%
  • Buy 100 for $153.80 each and save 37%
Inventory:
54
More Information
Current Range (A) 1.0 - 7.0
Voltage Requirement Dual AC
Steps per Revolution 200, 400
Power Supply AA2791B
Interested in large quantity discount?

Product Information

The BLD76-1 is a stepper motor driver that can drive motors rated from 1 to 7 amps/phase (unipolar rating). It can handle 6 lead and 8 lead motors. This driver features a unipolar bilevel (or dual voltage) drive technique with short circuit, open circuit, over and under voltage, and over temperature detection (with a Fault LED and output). A transformer is required to power up the driver.
See Accessories on this website for driver adders, such as shielded motor cables and connectors. For compatible high-torque stepper motors, consider our popular 23Y, 34Y and 42Y series. For standard torque (round-bodied motors), see 23W, 23D and 34D series.

  • Unipolar Operation
  • 10 Amps per Phase Operating Current (Kick Current)
  • 7 Amps per Phase Standstill Current
  • 65 Volt Operation
  • Short Circuit, Open Circuit, High Voltage, Low Voltage and Over Temperature Fault Detection
  • Inputs accept 24VDC signals
  • Motor On/Off Input
  • Half-Step and Full-Step Operations
  • Bilevel Driver Operation
  • Fault LED, and Fault Output
  • Detachable Terminal Block
  • Compact and Rugged
  • Available in Driver Packs
  • CE Certified and RoHS Compliant
