MBC158A
| Current Range (A) | 0.2 - 1.5 |
|---|---|
| Voltage Requirement | 12 - 48 VDC |
| Steps per Revolution | 200 - 1600 |
| Pulse Generator / Controller | - |
| Power Supply | PSAM48V1.3A |
Interested in large quantity discount?
Product Information

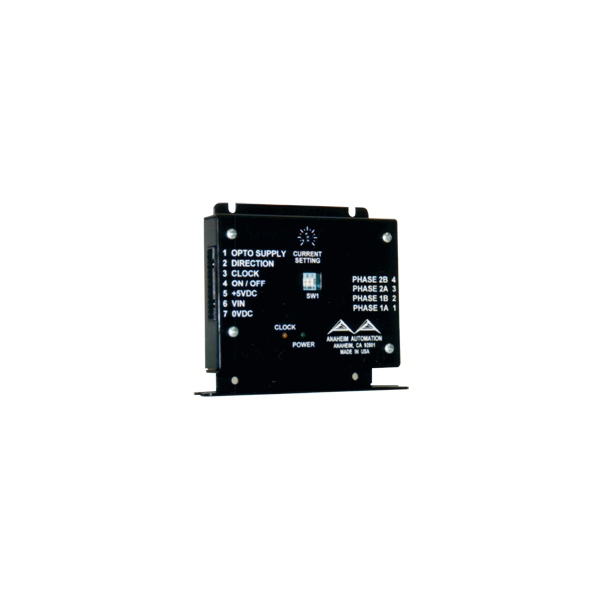

The MBC158A Microstep Motor Driver has an output current capability from 0.2 Amps Minimum to 1.5 Amps Maximum (Peak Rating). The MBC158A driver will operate off 12VDC Minimum to 48VDC Maximum. The inputs are Opto- Isolated with a minimum sourcing of 5 mA per input (5VDC Minimum to 12VDC Maximum). The clock input is set to receive negative edge clocks with a maximum frequency of 100kHz. The direction input is current sourcing for CW and no current for CCW. The ON/OFF feature is current sourcing to de-energize the step motor and no current to energize the motor. Reduce Current Enabled automatically reduces Motor current 50% after last step (20 msec delay). The +5VDC output supply is dependent on the input DC Supply Voltage ( 200mA @ 48VDC, 450mA @ 24VDC and 1000mA @ 12VDC). The driver has built-on features to indicate power on (Green LED) and Clocks being received, greater than 100 Hz (Yellow LED).
- 1.5 Amps/Phase Output Current
- Bipolar Microstepping Drive Operation
- Over Temperature and Short Circuit Shutdown
- Microstep Divisors of 8, 4, 2, or Full Step
- Compact Package: 4.550" x 3.825" x 0.838"
- 12-48VDC Power Requirement
- Accepts TTL Logic Level Inputs
- Ideal for Precise Positioning
- Efficient and Durable
- Long Life Expectancy
- CE Certified and RoHS Compliant
