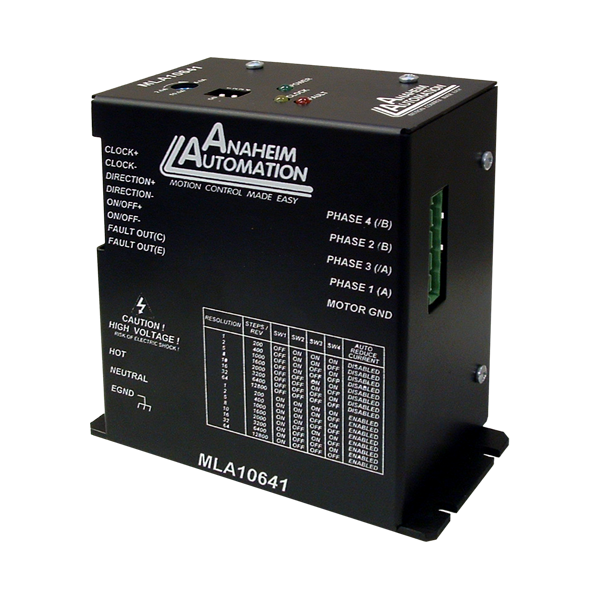

MLA10641

The MLA10641 High Performance Microstepping Driver has an output current capability of 2.0 Amps minimum to 10.0 Amps maximum (Peak Rating). The MLA10641 driver operates with an AC voltage of 90-132 Volts. The inputs are optically isolated with a minimum sourcing of 7.0 mA per input (+5VDC minimum to +24VDC maximum). The clock input is set to receive either positive or negative edge clocks with a maximum frequency of 400KHz. The MLA10641 driver offers direction control and motor current ON/OFF capabilities. The Reduce Current Enabled automatically reduces motor current to 50% of set value after the last step is made. The driver has built-in features to indicate power on (Green LED), Clocks being received (Yellow LED) and fault conditions (Red LED). It is highly recommended to use the external line filter included with purchase.
See Accessories for shielded cable and other stepper motor options. For compatible high-torque stepper motors, consider our popular 34Y and 42Y series. For super high-torque stepper motors, 34K and 42K series. For standard torque stepper motors (round-bodied), 34W series.

• Line-Powered Microstep Driver
• High Torque Output
• Output Current 10.0 Amps Peak
• 200 to 12,800 steps/rev
• Short Circuit Protection
• Over-Temperature and Over-Voltage Shutdown
• No Minimum Inductance
• Optical Isolation
• Motor On/Off Input
• RoHS Compliant
