MBC25P11

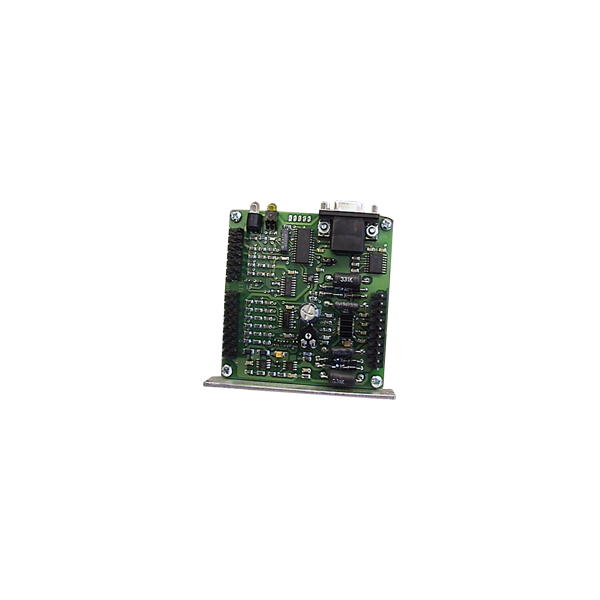

The MBC25P11 is an economical single-axis step motor driver integrated with a programmable pulse generator. The MBC25P11 microstep driver/pulse generator has an output current capability of 0.5A minimum to 2.5A maximum (peak rating). The MBC25P11 driver operates with a DC voltage of 12VDC to 35VDC. The MBC25P11’s internal PG (pulse generator) has four different programmable motion profiles. The MBC25P11 also has directional soft and hard limit switch inputs, a busy output, and a clock output that can be used for daisy chaining drivers together. The MBC25P11 driver features direction control and motor current on/off capabilities. The “Reduce Current Enabled” feature automatically reduces motor current to 70% of the set value. The driver has built-in features to indicate power on (green LED), running implemented. These divisions range from 200 steps/revolution to 1600 steps/revolution. The bipolar drive configuration handles 4, 6, and 8 lead step motors and is also equipped with short circuit, over temperature and crossover current protection. The MBC25P11 communicates via RS232 communication. The easy to use Windows software, SMPG10WIN, is used to directly set up the four different motion profiles.

• Microstep Driver with Pulse Generator
• Output Current: 2.5A Peak
• 200 to 1600 Steps/Revolution (1, 2, 4, and 8 Selectable Step Operation)
• Drives Two Motors in Series
• On-Board Programmable Pulse Generator
• Pulse from 77Hz to 15kHz
• Directional Soft and Hard Limit Switch Inputs
• Clock Output for Daisy Chaining
• Busy Output
• Motor On/Off Input and Automatic Current Reduction
• Short Circuit Protection
