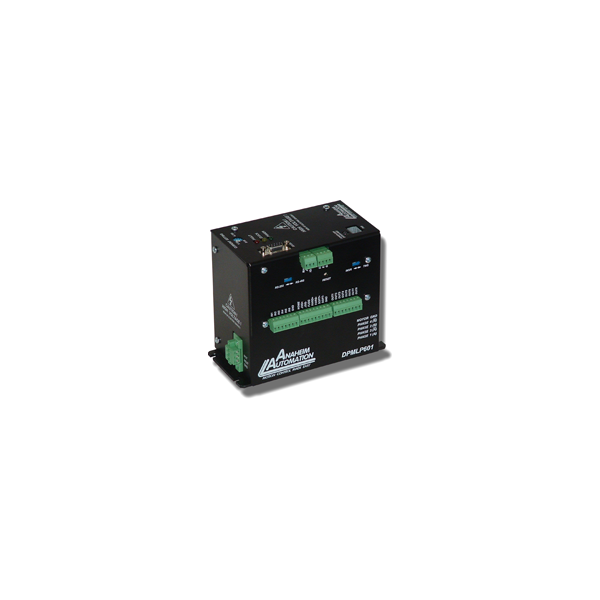

The DPMLA601 integrates a powerful microstepping driver and an easy-to-use programmable controller, giving you everything you need in one compact solution. Say good-bye to bulky power supplies and unnecessary wiring for good!
The DPMLA601 contains the popular MLA10641 stepper motor driver which is line-powered, giving outstanding "servo-like" performance. The driver can generate 100% more torque and power than typical 80VDC stepper drivers and is able to accelerate the motor faster due to the higher bus voltage. This increase in performance will shorten any system's cycle time while increasing your overall productivity rate.
The DPMLA601 provides independent control of a stepper motor from a PC's serial port or any RS232/RS485 machine controller serial port. The free, easy-to-use SMC60WIN software which can be downloaded from our website, is equipped with a graphical interface that can be used to directly control motion or create stored programs for complete machine control.
Line Powered Microstep Driver Pack
Integrated Programmable Controller
Easy-to-Use Windows Software Included
24V Compatible Inputs
0-5V Analog Input for Speed or Distance
10 Amp Maximum Current Output
Smooth Microstepping Resolution
Compact and Rugged Construction
Ideal Applications:
Automated machinery or processes that involve food, cosmetic, or medical packaging, labeling, or tamper-evident requirements, cut-to-length applications, electronic assembly, robotics, factory automation, special filming and projection effects, medical diagnostics, inspection and security devices, conveyor and material handling systems, metal fabrication (CNC machinery), pump flow control, XY and rotary tables, equipment upgrades or wherever precise positioning or speed control is required.
