MBL536
| Current Range (A) | 1.0 - 7.0 |
|---|---|
| Voltage Requirement | Dual DC |
| Steps per Revolution | 200, 400 |
| Pulse Generator / Controller | - |
| Power Supply | PSK32791B |
Interested in large quantity discount?
Product Information

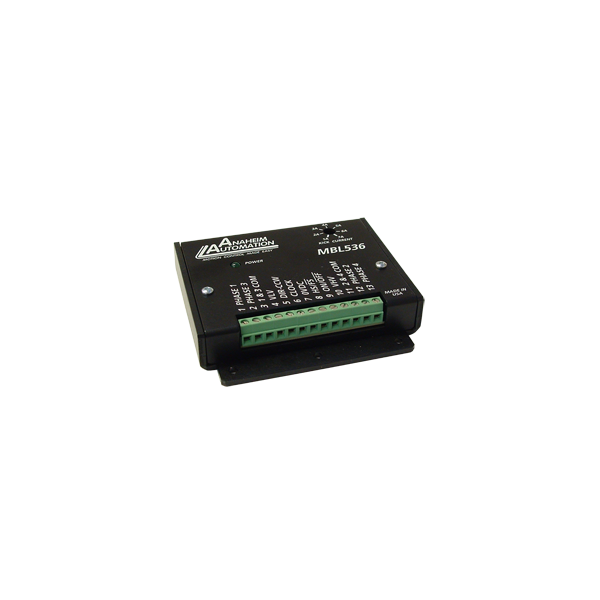

The MBL536 is an improved version of the MBL500 series step motor drivers. The MBL536 with its compactness and attractive rugged package style employs bilevel (or dual voltage) drive technique for high performance operation of step motors providing significantly improved motor speed torque output. New features include selectable "+" or "-" going clock inputs, transient voltage protection, and improved Full-step operation. A power supply is required and must be purchased separatlely.
See Accessories on this website for driver adders, such as shielded motor cables, connectors, and power options. For compatible high-torque stepper motors, consider our popular 23Y, 34Y and 42Y series. For standard torque (round-bodied motors), see 23W series.
MBL536 is LTSOH (Limited to Stock on Hand)
- 10 Amperes/phase Maximum Operating Current
- 7 Amperes/phase Standstill motor current
- Half-step and Full-step Operation
- Bilevel Drive Operation
- No RFI or EMI Problems
- TTL-CMOS Compatible Inputs
- Clock and Direction or Dual Clock Operation
- Motor Turn-off Input
- Compact and Rugged
- RoHS Compliant
