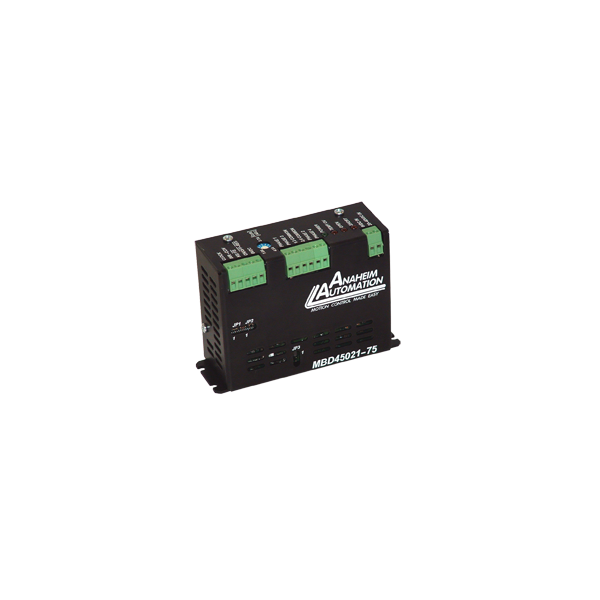

MBD45021-75
| Current Range (A) | 1.0 - 4.5 |
|---|---|
| Voltage Requirement | 24 - 40 VDC |
| Steps per Revolution | 200, 400 |
| Pulse Generator / Controller | - |
| Power Supply | PSA40V4A |
Interested in large quantity discount?
Product Information
The MBD45021-75 is a bilevel step motor driver specifically designed to dynamically enhance driver performance. The driver requires 24 to 40 volts DC to operate with this drive. The drive will out perform all standard 24VDC drivers in the industry. If your system is designed for a 24VDC specification, this driver will allow your motor to increase its operating output performance thanks to this outstanding new driver design! A power supply is required and must be purchased seperately.
See Accessories on this website for driver adders, such as shielded motor cables, connectors, and power supply options. For compatible high-torque stepper motors, consider our popular 23Y and 34Y series. For standard torque (round-bodied motors), see 23W series.
- Enhanced Torque/Speed Output over 24VDC drives
- Improved Start-Stop Speeds
- 1.0-4.5 Amps/Phase Operating Current
- Short Circuit Protection
- Open Motor Wire Detection
- No RFI or EMI Problems
- Requires 24-40VDC
- TTL-CMOS Compatible Inputs
- Receives Positive or Negative Going Clocks
- Full Step or Half Step Operation
- Motor Turn Off Provisions
- Enclosed Modular Package
- RoHS Compliant
