MBC05641

1pc Price:
$196.00
Quantity Discount
  • Buy 50 for $193.20 each and save 1%
  • Buy 100 for $170.01 each and save 13%
Inventory:
64
More Information
Current Range (A) 0.5 - 5.0
Voltage Requirement 24 - 48 VDC
Steps per Revolution 200 - 12800
Pulse Generator / Controller -
Power Supply PSA40V4A-1
Interested in large quantity discount?

Product Information

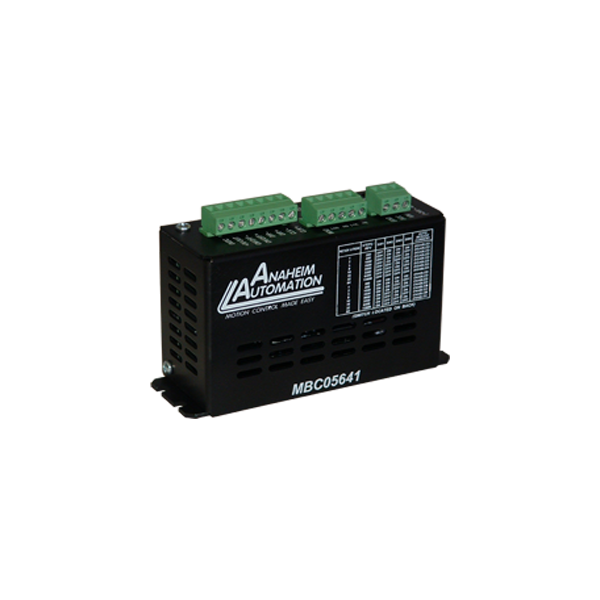

The MBC05641 Microstep Motor Driver has an output current capability of 0.5 Amps minimum to 5.0 Amps maximum (Peak Rating). The MBC05641 driver operates from a DC voltage of 24-48 Volts. The inputs are optically isolated with a minimum sourcing of 7.0mA per input (+3.5VDC minimum to +24VDC maximum). The clock input is set to receive either positive or negative edge clocks with a maximum frequency of 400kHz. The MBC05641 driver offers direction control and motor current ON/OFF capabilities. The Reduce Current Enabled automatically reduces motor current to 50% of set value after the last step is made (1sec delay). The driver has built-in features to indicate power on (Green LED), clocks being received (Yellow LED), and fault conditions (Red LED). A power supply is required and must be purchased seperately.
See Accessories on this website for driver adders, such as shielded motor cables, connectors, and power supply options. For compatible high-torque stepper motors, consider our popular 23Y, 24Y, 34Y and 42Y series.

  • Output Current 5.0 Amps Peak
  • 200 to 12,800 steps/rev (1,2,5,10,16,32 and 64 selectable step operations
  • Short Circuit Protection
  • Size: 5.4"L x 1.868"W x 3.36"H
  • No Minimum Inductance
  • Optical Isolation
  • Motor On/Off Input
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet

User Manual (PDF)

RoHS Compliant
