MBC032562
| Current Range (A) | 0.0 - 3.0 |
|---|---|
| Voltage Requirement | 10 - 24 VDC |
| Steps per Revolution | 400 - 51, 200 |
| Pulse Generator / Controller | - |
| Power Supply | PSAM24V8.3A |
Interested in large quantity discount?
Product Information

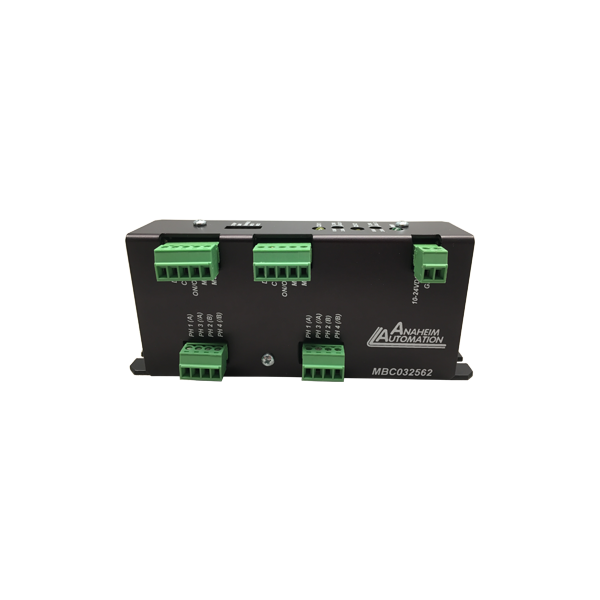

The MBC032562 is a small, fully enclosed dual axis stepper motor driver perfect for applications where space is precious and smooth motion is required. With a small footprint and divide by 256 microstepping, this driver provides great smoothness, performance and flexibility for a driver its size. The MBC032562's greatest asset however, is how easy it is to use. The detachable screw type terminal blocks make it simple to install. The MBC032562 has divisors of 256, 64, 8 and half step. A power supply is required and must be purchased separately.
See Accessories on this website for driver adders such as shielded motor cables, connectors, and power supplies. For compatible high-torque motors, consider our popular 08Y, 11Y, 14Y, 15Y, 17Y, 23Y and 24Y (up to 3.0 amps).
- Compact Dual-Axis Microstep Driver
- Selectable Divisors of 2, 8, 64 and 256
- Detachable Terminal Blocks
- 0.0-3.0 Amp Output Current
- Compatible with Size 8, 11, 14, 17, 23 and 24 Frame Stepper Motors (model dependent)
- 24VDC Compatible Input Signals
- Sinking and Sourcing Inputs
- 10-24VDC Operating Voltage
- Low Cost - Excellent Value
- Easy to Install
- RoHS Compliant
