MBC01081
| Current Range (A) | 0.2 - 1.0 |
|---|---|
| Voltage Requirement | 10 - 30VDC |
| Steps per Revolution | 200-1600 |
| Pulse Generator / Controller | - |
| Power Supply | PSAM24V2.7A |
Interested in large quantity discount?
Product Information

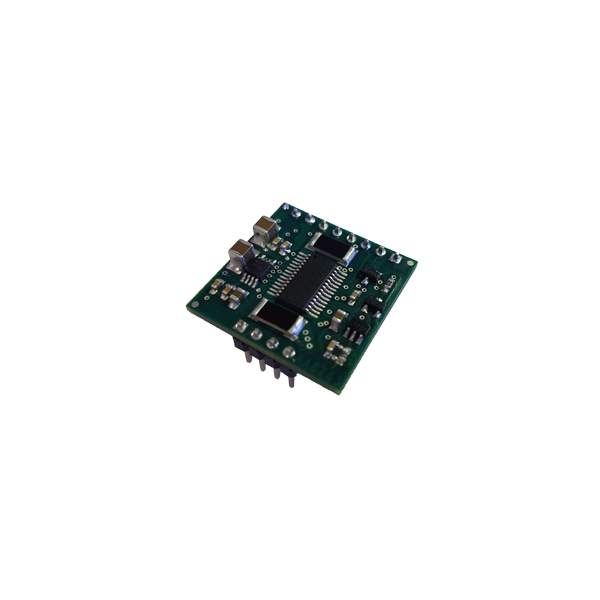

The MBC01081 is a 1.0 amps/phase bipolar microstep driver capable of running four, six and eight lead step motors. The MBC01081 has an output current range of 0.2 to 1.0 amps/phase and operates off 10VDC minimum to 30VDC maximum. The inputs are capable of running from either open collector or TTL level logic outputs from PLCs. The MBC01081 features resolutions from 200-1600 steps/revolution, providing smooth rotary operation, built in over temperature and short circuit shut down, and automatic reduction in current after clock pulses stop being received. The MBC01081 is a compact, low profi le package meant to be used where space is limited but performance is expected. With two connector arrays arranged in a 2.54 mm pattern, it allows easy integration and connectivity to the OEM-side mother board.
- PCB Board Mount Microstep Driver
- 0.2 - 1.0 Amp Output Current
- Compatible with Size 8, 11, 14, 17, and 23 Frame Stepper Motors
- TTL Compatible Input Signals
- Microstep Divisors of 8, 4, 2, or Full Step
- 10-30VDC Operating Voltage
- Compact Package: 0.95" x 0.95" x 0.45"
- Low-Cost - Excellent Value
.png)
.png)
.png)
