MDC020-050101
| Input Range | 6 - 50VDC |
|---|---|
| Max Power (W) | 250 |
| Peak Current (A) | 10 |
| Feedback Loop | Open |
Interested in large quantity discount?
Product Information

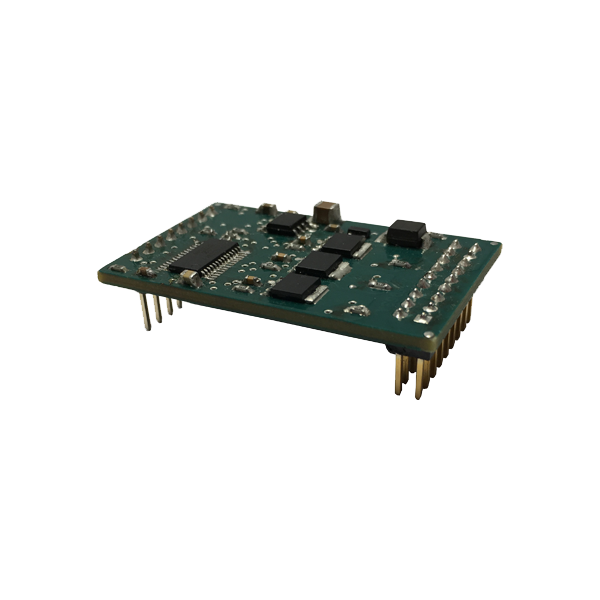

The MDC020-050101 driver is designed to drive DC Brushless motors at currents of up to 10A (peak) and 50V. The driver operates in the basic open loop configuration with 120° DC Brushless motors. The driver is protected against over current, hall sensor error and under voltage. When an error occurs, a fault output is turned low logic ‘0’ to notify the user. An external voltage (0.75-5VDC) is used to control the speed of the motor. The direction of the motor can be preset by the direction control input. The freewheel input overrides all other inputs into the driver. With two connector arrays arranged in a 2.54 mm pattern, it allows easy integration and connectivity to the MDC020-EVALBOARD or the OEM-side mother board.
- Open Loop Operation
- 6 - 50VDC Voltage Range
- 0.75V to 5V External Voltage Speed Control
- 2-Quadrant Operation
- Hall Sensor Feedback
- Short Circuit Protection
- Maximum Current Limit at 10.0 Amps (peak)
- Enable and Direction Input
- TTL-CMOS Compatible Inputs
- Compact Size
- Easy Connectivity/Integration into Motherboard
.png)
