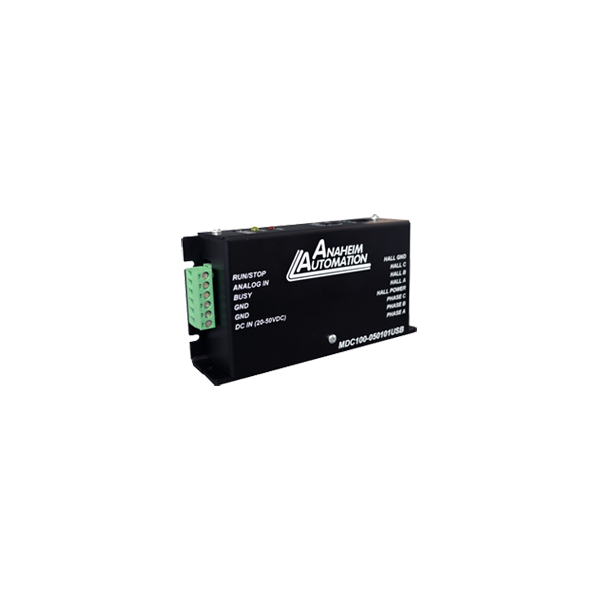

MDC100-050101USB
| Input Range | 20 - 50VDC |
|---|---|
| Max Power (W) | 250 |
| Peak Current (A) | 10 |
| Feedback Loop | Programmable PI |
Interested in large quantity discount?
Product Information
The MDC100-050101USB controller is a Programmable Proportional, Integrator (PI) Controller designed to drive DC Brushless motors at currents of up to 10A (peak) and 50V. Included on the driver is an internal potentiometer to control the maximum phase current allowed into the motor. The driver is protected against over current (cycle-by-cycle), hall sensor error and under voltage. When an error occurs, a fault light is turned on to notify the user.
Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.
Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.
- Requires 20-50 VDC
- Programmable PI Controller
- Maximum Current Limit Setting from 1.0-10.0 Amps
- 0-5VDC Analog Input Speed Control
- 2-Quadrant Operation
- Hall Sensor Feedback
- Short Circuit Protection
- Run/Stop Inputs
- TTL-CMOS Compatible Inputs
- Dual Mounting Option
- RoHS Compliant
.png)
.png)
.png)
