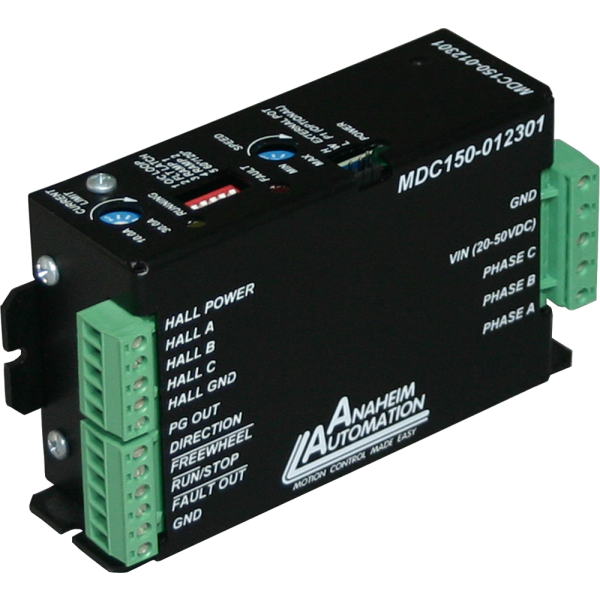

MDC150-012301

The MDC150-012301 driver is designed to drive DC brushless motors at currents of up to 30A (peak) and 12V. Using hall sensor feedback, a constant velocity mode can be selected. The driver is protected against over current (cycle-by-cycle or latched), hall sensor error and under voltage. When an error occurs, a fault light is turned on to notify the user. Included on the driver is an internal potentiometer to control the maximum phase current allowed into the motor and an internal potentiometer to control the speed of the motor. An optional external potentiometer (10K) or external voltage (1-4VDC) can be used to control the speed as well. The direction of the motor can be preset by the direction control input. Other inputs to the drive include a run/stop and a motor freewheel input. When using the run/stop input, there are three ramp up profiles from standstill to select from. The run/stop input overrides all other inputs into the driver.

• Maximum Current Limit Setting from 10.0-30.0 Amps
• Internal or External Potentiometer Speed Control
• 2-Quadrant Operation
• Hall Sensor Feedback
• Constant Velocity Mode
• Short Circuit Protection
• Requires 12VDC
• Speed Out, Fault Out
• Brake, Disable and Direction Inputs
• Selectable Ramp Up/Down
• TTL-CMOS Compatible Inputs
• Compact Size (5.25" x 3.06" x 1.65")
• Dual Mounting Option
• Detachable, Screw type Terminal Blocks
• CE Certified and RoHS Compliant
