MDC150-050301
| Input Range | 20 - 50VDC |
|---|---|
| Max Power (W) | 500 |
| Peak Current (A) | 30 |
| Feedback Loop | Fixed |
Interested in large quantity discount?
Product Information

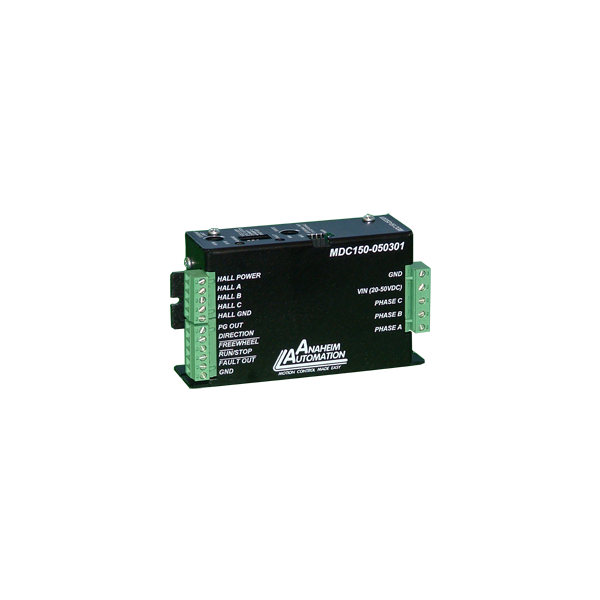

The MDC150-050301 driver is designed to drive DC brushless motors at currents of up to 30A (peak) and 50V. The current limit can be set with an adjustable potentiometer right on the top of the driver. It also features hall sensor feedback and a constant velocity mode so you can overcome occasional torque spikes without slowing down.
Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.
Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.
- Maximum Current Limit Setting 10.0-30.0A
- Hall Sensor Feedback
- Constant Velocity Mode
- Shortcircuit Protection
- Brake, Disable and Direction Inputs
- Selectable Ramp Up/Down
- TTL-CMOS Compatible Inputs
- Compact Size (5.25" x 3.06" x 1.65")
- Two Mounting Options
- CE Certified and RoHS Compliant
.png)
.png)
.png)
.png)
.png)
