MDC151-050101
| Input Range | 20 - 50VDC |
|---|---|
| Max Power (W) | 250 |
| Peak Current (A) | 10 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information

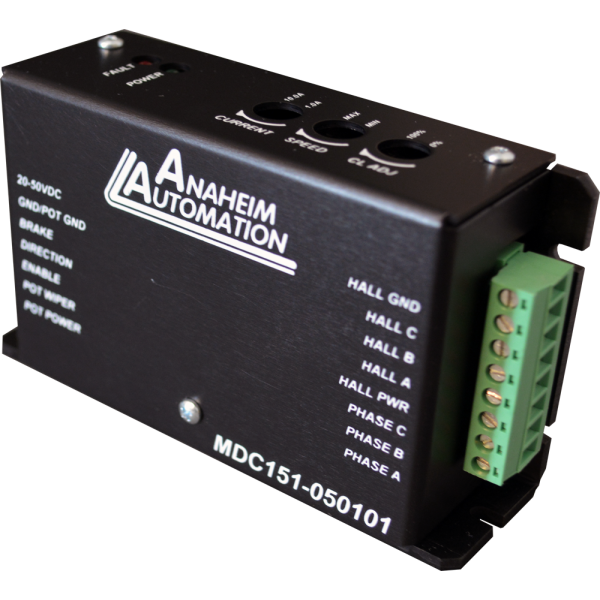

The MDC151-050101 driver is designed to drive DC Brushless Motors at currents up to 10A (peak) and 50VDC. Using hall sensor feedback, a constant velocity mode can be selected. The driver is protected against over current (cycle-by-cycle), hall sensor error, and under voltage. When an error occurs, a fault light is turned on to notify the user.
Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.
Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.
- Requires 20-50VDC
- Maximum Current Limit Setting from 1.0-10.0 Amps
- 0V to 5V External Voltage Speed Control
- 2-Quadrant Operation
- Hall Sensor Feedback
- Constant Velocity Mode
- Short Circuit Protection
- Brake, Disable, and Direction Inputs
- TTL-CMOS Compatible Inputs
- Dual Mounting Option
