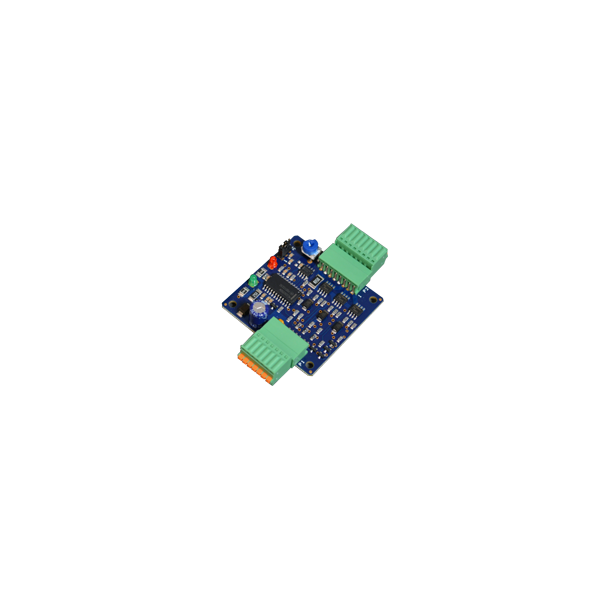

MDC151-024031-TB
| Input Range | 10 - 24VDC |
|---|---|
| Max Power (W) | 36 |
| Peak Current (A) | 3 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information
The MDC151-024031 driver is designed to drive Brushless motors at a fixed peak current of 3.0A and 24V. The driver is set to constant velocity mode (closed-loop mode) using hall sensor feedback and is protected against over current (cycle-by-cycle). Also hall sensor error and under voltage. When an error occurs, a fault light will notify the user. An external voltage (0-5VDC) is necessary to control the speed. The direction of the motor can be present by the direction control input. To disable energy from the motor, there is a Freewheel input that can be grounded.
Need to know the RPM of your motor? Check out our new SPDRO-4 speed readout module.
Keep your input voltage from rising too high due to internal mismatches while running your BLDC motor with our new PWR-24V/48V CLAMP active crowbar circuit.
- Current Limit Set at 3.0 Amps
- 0V to 5V External Voltage Speed Control
- 2-Quadrant Operation
- Closed-Loop Velocity Mode
- Cycle by Cycle Short Circuit Protection
- Requires 10 - 24VDC
- Freewheel and Direction Inputs
- TTL-CMOS Compatible Inputs
- Compact Size
- Open Frame
