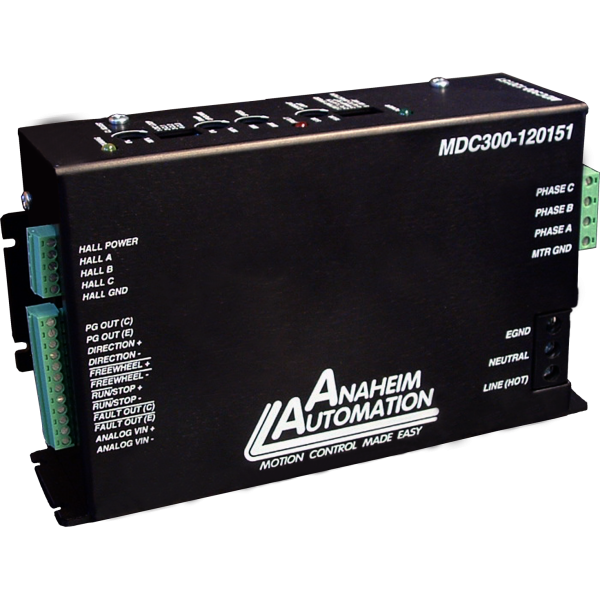

MDC300-120151
| Input Range | 85 - 135VAC |
|---|---|
| Max Power (W) | 750 |
| Peak Current (A) | 15 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information
The MDC300-120151 driver is designed to drive DC brushless motors at currents of up to 15A and 170VDC. A constant velocity mode can be selected, using hall sensor feedback. The driver is protected against under voltage, hall sensor current, and over current (cycle-by-cycle or latched). When an error occurs, a fault light notifies the user. If the fault latch is enabled and an error occurs, the fault output goes low to notify the user. Included on the driver are internal potentiometers to control the maximum phase current, and the speed of the motor. An external voltage may be used to control speed as well.
- Maximum Current Limit Setting from 5.0 to 15.0 Amps
- Internal/External Potentiometer or Voltage Input Speed Control
- Onboard Potentiometer Ramp Up/Down Adjustment
- 2-Quadrant Operation
- Hall Sensor Feedback
- Constant Velocity Mode
- Short Circuit Protection
- Requires 85 - 135 VAC
- Optically Isolated Inputs and Outputs
- Run/Stop, Freewheel and Direction Inputs
- Dual Mounting Option
- RoHS Compliant
.png)
.png)
.png)
