MDC300-120301
| Input Range | 85 - 135VAC |
|---|---|
| Max Power (W) | 1500 |
| Peak Current (A) | 30 |
| Feedback Loop | Adjustable |
Interested in large quantity discount?
Product Information

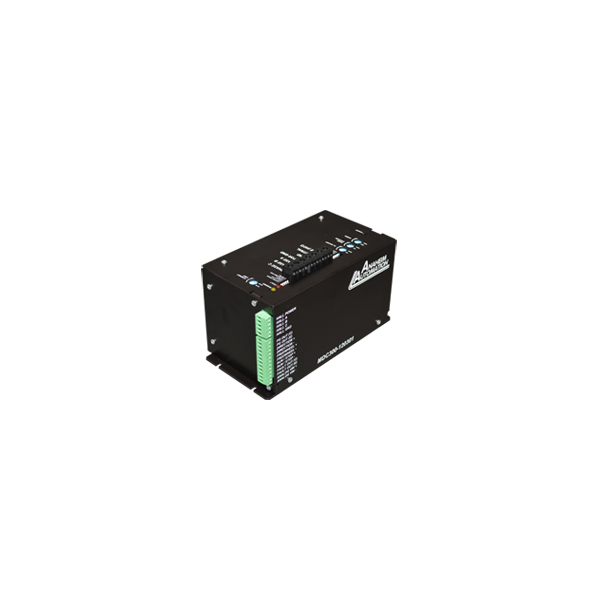

The MDC300-120301 driver is designed to drive DC brushless motors at currents of up to 30.0A and 170VDC. A constant velocity mode can be selected, using hall sensor feedback. The driver is protected against under voltage, hall sensor current, and over current (cycle-by-cycle or latched). When an error occurs, a fault light notifies the user. If the fault latch is enabled and an error occurs, the fault output goes low to notify the user. Included on the driver are internal potentiometers to control the maximum phase current, and the speed of the motor. An external voltage may be used to control speed as well.
- Maximum Current Limit Setting from
10.0 to 30.0 Amps - Internal/External Potentiometer or Voltage
Input Speed Control - On-board Potentiometer Ramp Up/Down Adjustment
- 2-Quadrant Operation
- Hall Sensor Feedback
- Constant Velocity Mode
- Short Circuit Protection
- Requires 85 - 135 VAC
- Optically Isolated Inputs and Outputs
- Run/Stop, Freewheel and Direction Inputs
- Dual Mounting Option
- RoHS Compliant
.png)
.png)
.png)
