NBC-BG3320B-600H/AE2K
| Travel (mm) | 600 |
|---|---|
| Lead (mm/rev) | 20 |
| Limit Switch | Proximity |
| Precision (um) | 70 |
| Motor Interface | NEMA 34 |
| Block Type | 2 Long Blocks |
Interested in large quantity discount?
Product Information

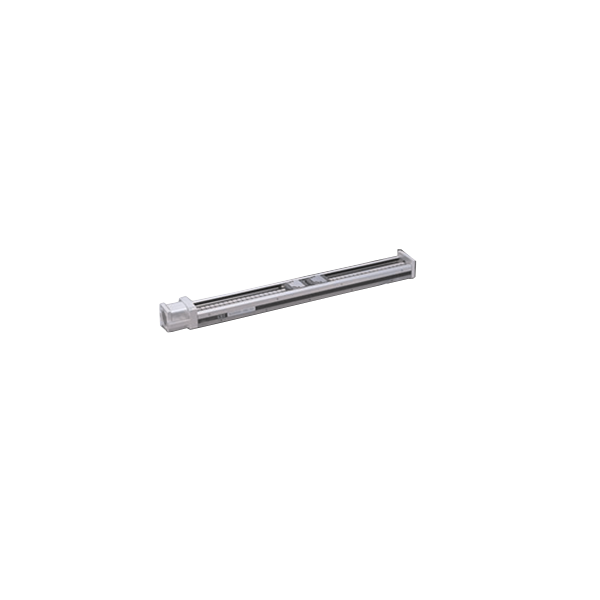

The NBC-BG33 offers a compact size and a performance that beats conventional positioning tables. The "U" shape guide rail and slide block provide multiple functions offering a high rigid structure that is resistant to bending. The combination of a precision ground guide rail, slide block and precision ball screws provide higher accuracy than most competitors. This design allows you to have resolutions of ±3μm to ±1μm respectively. The NBC-BG33 can be configured with one or two blocks depending on what your application calls for along with proximity sensors for limits. To top it all off, this actuator can operate at a speed of up to 1,100 mm/sec.
- Travel Options: 150 - 600 mm
- Accuracy: Up to 15μm/mm
- Speed: Up to 44 in/sec
- Motor Flange Options: NEMA 17, 23, and 34
- Supported Rails and Low-Profile Design
- Heavy Duty Applications
- Motor and Encoder Options
- One and two-axis configurations (see Ordering Information for full part number)
.png)
User Manual (PDF)
