PKS-PRO-E-01-A-JP24
| Rated Voltage | 170-253 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 45 |
| Rated Current (Arms) | 1.05 |
| Inertia (oz-in-sec2) | 10.3376 |
| Torque Constant KT (oz-in/A) | 53.246 |
| Resistance (ohms) | 13.7 |
| Inductance (mH) | 13.9 |
| Brake (24VDC) | Yes |
| Motor Length (mm) | 134.5 |
| Shaft Diameter (mm) | 8 |
Interested in large quantity discount?
Product Information

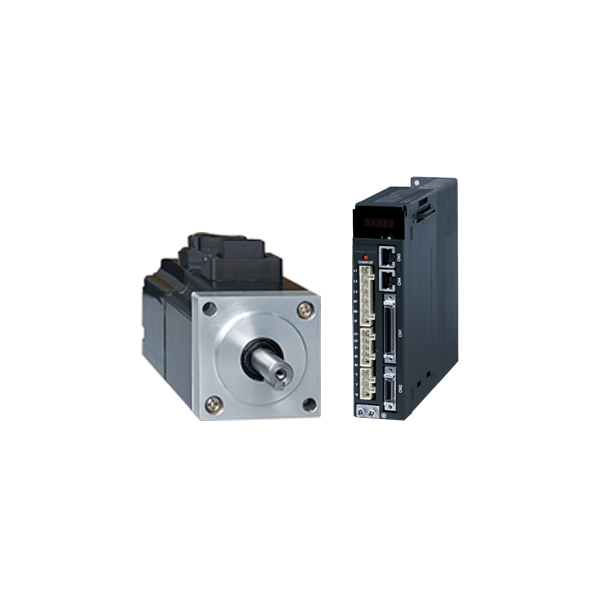

The PKS-PRO-E-01 Servo System includes a 100 Watt EMJ AC Servo Motor operated by the PRONET-E Drive. These packages are ideal for quick and easy start-ups, convenience and performance! The Servo Motors included in these packages provide torque up to 45 oz-in. The PRONET-E Drives offer current forward-feedback control, speed viewer, and inertia viewer; providing for improved response performance. These drives operate standard with MODBUS and CANopen Protocol. Each system includes a 5m Motor Power Cable and 5m Encoder Cable.
Items marked "LTSOH" are Limited to Stock on Hand and will no longer be available after the current stock has been depleted. If you require assistance with making a different selection, please contact our applications engineers here.
- 170-253VAC Single Phase Input
- Rated Torque of 45 oz-in
- Power Ratings up to 100 Watts
- 2,500 PPR Incremental Encoder
- Maximum Speed of 5000 RPM
- Enclosed and Self-Cooled
- Oil Seal and Optional Brake
- MODBUS and CANopen Standard
- RS485 Interface
- Real Time Monitoring and Management
- Position, Speed, and Torque Control
- CE Certified
