PKS-PRO-E-02-A-JP22
| Rated Voltage | 170-253 VAC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 91 |
| Rated Current (Arms) | 1.3 |
| Inertia (oz-in-sec2) | 0.00269 |
| Torque Constant KT (oz-in/A) | 79.9 |
| Resistance (ohms) | 11 |
| Inductance (mH) | 24.7 |
| Brake (24VDC) | No |
| Motor Length (mm) | 123 |
| Shaft Diameter (mm) | 14 |
Interested in large quantity discount?
Product Information

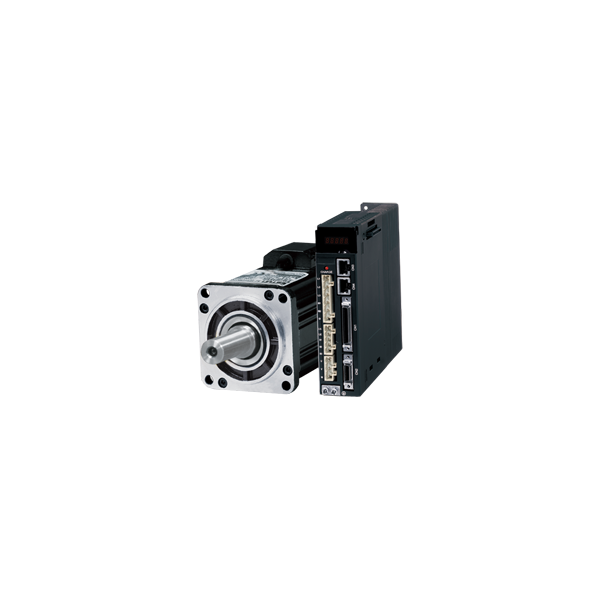

The PKS-PRO-02 servo system includes a 200 Watt EMJ AC Servo Motor operated by the PRONET-E drive. These packages are ideal for quick and easy start-ups, convenience and performance! The servo motors included in these packages provide torque up to 91 oz-in. The PRONET-E drives offer current forward-feedback control, acceleration forward-feedback control, speed viewer, and inertia viewer; providing for improved response performance. These drives operate standard with MODBUS and CANopen Protocol. Each system includes a 5m motor power cable, 5m encoder cable, and a 2m communication cable.
For replacement cables and additional servo system accessories, click here.
- 85-253VAC Single Phase Input
- Rated Torque of 91 oz-in
- Power Ratings up to 200 Watts
- 2,500 PPR Incremental Encoder
- High Overload Capacity
- MODBUS and CANopen Standard
- Real-Time Monitoring and Management
- ESView Communication Software
- Parameter Management
- I/O Signal Monitoring
- Torque and Speed Analysis
- Gain Adjustments
- RS485 Interface
- Position, Speed and Torque Control
.png)
.png)
.png)
.png)
.png)
