KNC-SRV-SMC40S-0005-30MAK-5DSU

1pc Price:
$198.00
Quantity Discount
  • Buy 10 for $191.36 each and save 3%
  • Buy 50 for $178.15 each and save 10%
  • Buy 100 for $175.10 each and save 12%
Inventory:
1
More Information
Rated Torque (oz-in) 23
Rated Power (Watts) 50
Rated Speed (RPM) 3000
Max Speed (rpm) 3942
Rated Current (Arms) 1.5
Voltage 24-70 VDC
Brake No
Inertia (oz-in-sec2) 0.00025
Torque Constant KT (oz-in/A) 15.6
Resistance (ohms) 4.1
Inductance (mH) 4.5
Length (mm) 74.6
Weight (lbs) 0.88
Interested in large quantity discount?

Product Information

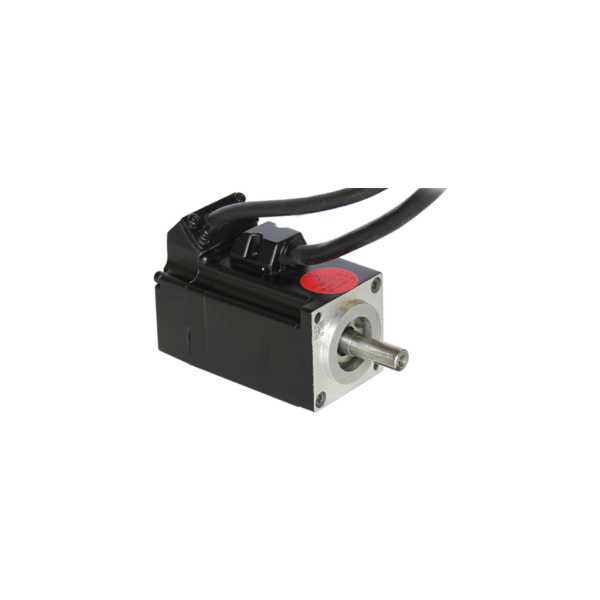

With a 40mm square flange size, the KNC-SRV-SMC40S-0005-30MAK-5DSU Servo Motor offers a low-cost solution for motion control applications requiring position and speed control. The 16-bit single-turn Magnetic Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors have Class F Insulation, the highest insulation class available. These motors operate quietly, maintaining reliability and stability even in high-temperature environments. These Servo Motors boast peak torque values up to 68 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and have a rated torque of 23 oz-in.

  • 24-70VDC Servo Motor
  • 50W Power Rating
  • Rated Torque of 23 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 3942 RPM
  • Magnetic Encoder
  • IP65 for Body, IP54 Shaft Seal
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)

.STEP File (.zip File)
