PSA-12VB24V6A
| Input Voltage (VDC) | 12 |
|---|---|
| Output Voltage (V) | 24 |
| Total Power (W) | 144 |
Interested in large quantity discount?
Product Information

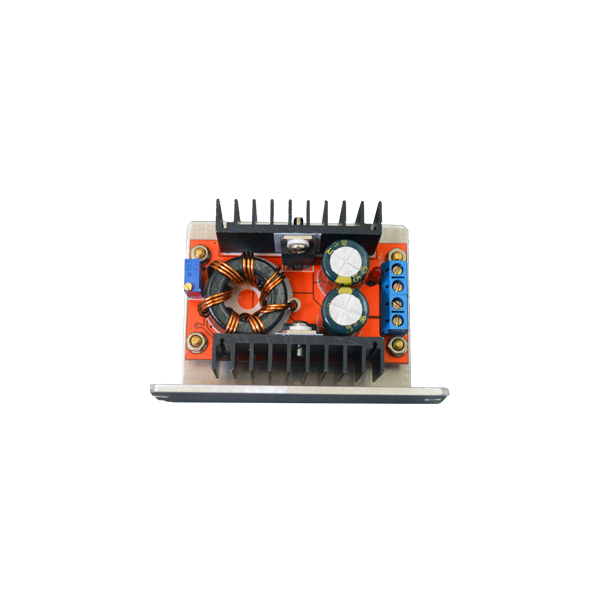

The PSA-12VB24V6A DC-DC voltage boost module has a power capability of 144 watts and conversion efficiency of 94%. This voltage boost module is efficient to run Anaheim Automation lines of low current microsteppers, brushless and programmable controllers. With a compact size of 3.20" x 2.20" x 1.25" mounted on an "L Bracket", the PSA-12VB24V6A can be mounted just about anywhere. The module is rated for an industrial operating temperature, -40°C to +85°C. This module is not protected against over current and reverse polarity. If a voltage other than 12V to 24V is needed, contact Anaheim Automation for custom tuning of the input and output.
- Non-isolated Voltage Boost Module
- Input Voltage: 12VDC
- Output Voltage: 24VDC
- Input Current: 10A (16A with air flow)
- Peak Output Current: 4A (6A with air flow)
- Power: 144W
- Low Cost, High Reliability
- High Efficiency, Low Working Temperature
- 100% Full Load Burn-In Test
- No Short Circuit/Over VoltageProtection (Please Install fuses and protection circuits at Input)
- Compact Size, Light Weight
Spec Sheet (PDF)
