PSAM24V8.3A

PSAM24V8.3A

PSEPM-0200-1-24V-8.4A

PSEPM-0200-1-24V-8.4A

PSEPM-0150-1-48V-3.2A

1pc Price:
$82.00
Quantity Discount
  • Buy 10 for $79.78 each and save 3%
  • Buy 25 for $71.03 each and save 13%
  • Buy 50 for $70.05 each and save 15%
  • Buy 100 for $69.11 each and save 16%
Inventory:
4
More Information
Input Voltage (VAC) 85-264VAC, Single Phase, 47-63Hz
Output Voltage (V) 48
Total Power (W) 150
Interested in large quantity discount?

Product Information

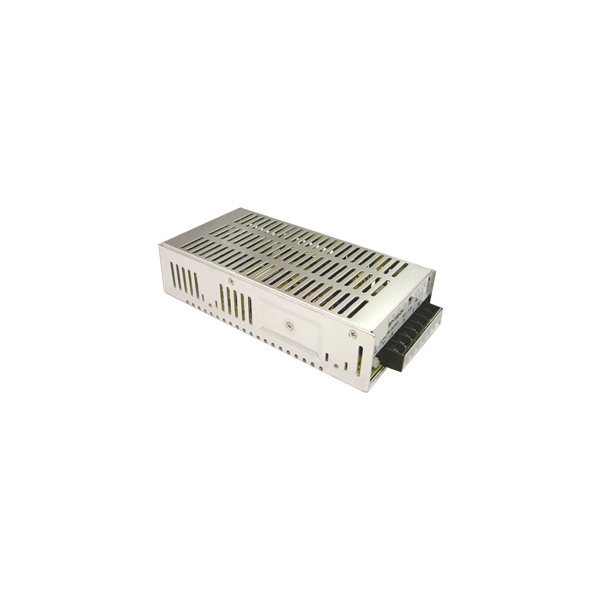

Anaheim Automation's PSEPM-150 series offers versatility and functionality. This power supply can provide up to 150 Watts of power at voltages of 24 and 48VDC with a universal input range of 85-264VAC. Integrated into the power supply is a PFC function, PF>0.93 as well as a built-in constant current limiting circuit, so the unit draws less current and provides up to 87-89% efficiency. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, over voltage, and over temperature protection features; the option of remote ON-OFF control is also available. In addition to flexibility and cost-efficiency, the PSEPM series offers high reliability and a long lifetime.

  • Power: 150W
  • Single Phase
  • Output Voltage: 24V and 48V
  • Peak Current: 3.2A to 6.3A
  • Input Voltage: 85-264VAC
  • Frequency Range: 47-63Hz

Spec Sheet (PDF)
