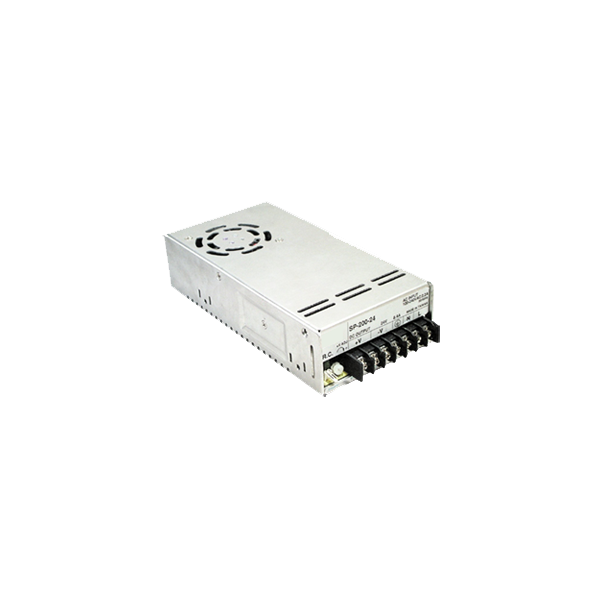

PSEPM-0200-1-24V-8.4A
| Input Voltage (VAC) | 85-264VAC, Single Phase, 47-63 Hz |
|---|---|
| Output Voltage (V) | 24 |
| Total Power (W) | 200 |
Interested in large quantity discount?
Product Information
Anaheim Automation's PSEPM series offers versatility and functionality. These power supplies provide up to 200 Watts of power at voltages of 24 and 48VDC with a universal input range of 88-264VAC. Integrated into the power supply is a PFC function, PF>0.93 as well as a built-in constant current limiting circuit, so the unit draws less current and provides up to 87-89% efficiency. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, over voltage, and over temperature protection features; the option of remote ON-OFF control is also available. In addition to flexibility and cost-efficiency, the PSEPM series offers high reliability and a long lifetime.
- Power: 200W
- Single Phase
- Output Voltage: 24V and 48V
- Peak Current: 4.2A to 8.4A
- Input Voltage: 85-264VAC
- Frequency Range: 47-63Hz
- Single Phase
.png)
.png)
Spec Sheet (PDF)
