PSESMB-0200-1-48V-4.4A
| Input Voltage (VAC) | 90-132VAC/180-264 VAC selected by switch, Single Phase, 47-63Hz |
|---|---|
| Output Voltage (V) | 48 |
| Total Power (W) | 200 |
Interested in large quantity discount?
Product Information

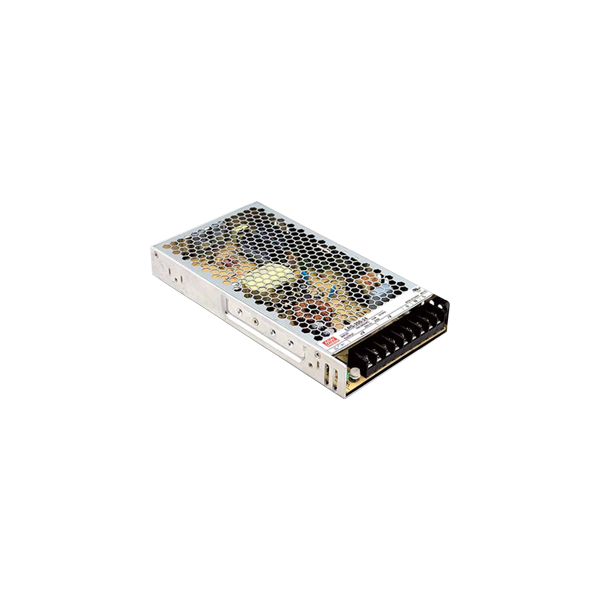

Anaheim Automation's PSESMB series is a cost-effective choice for your power supply requirements. This power supply provides up to 200Watts of power at voltages of 24, 36 and 48VDC with a switch selectable input range of 90-132VAC to 180-264VAC. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, and over voltage protection features. Compact in size and affordably priced, they provide up to 90% efficiency, high reliability, and a long lifetime.
- AC Input Range Selectable By Switch
- Short Circuit/Overload/Over Voltage/Over Temperature Protection
- Cooling By Free Air Convection
- Withstand 300VAC Surge Input For 5 seconds
- Built-in Constant Current Limiting Circuit
- LED Indicator for Power On
- 100% Full Load Burn-in Test
- 5G Anti-Vibration Capability
- No Load Power Consumption Less Than 0.75W
- Operating Temperature Range: -25°C to 70°C
.png)
.png)
Spec Sheet (PDF)
