PSRSP-320-48V-6.7A

1pc Price:
$109.00
Quantity Discount
  • Buy 10 for $107.53 each and save 1%
  • Buy 25 for $101.52 each and save 7%
  • Buy 50 for $100.13 each and save 8%
  • Buy 100 for $98.78 each and save 9%
Inventory:
More Information
Input Voltage (VAC) 88-264VAC, Single Phase, 47-63Hz
Output Voltage (V) 48
Total Power (W) 320
Lead Time Typ 20 Days
Interested in large quantity discount?

Product Information

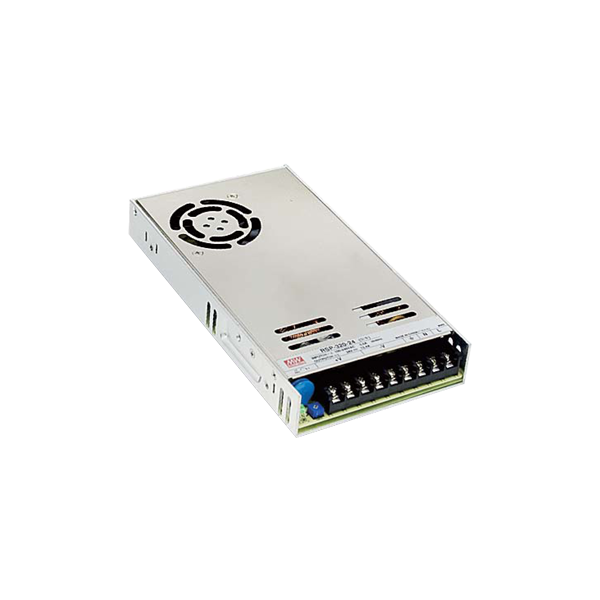

Anaheim Automation’s PSRSP 320 series offers versatility and functionality. These power supplies provide up to 320 Watts of power at voltage of 48VDC with a universal input range of 88-264VAC. Integrated into the power supply is a PFC function, PF>0.95 as well as a built-in constant current limiting circuit, so the unit draws less current and provides up to 90% efficiency. Each power supply is equipped with an LED indicator for power on in addition to short-circuit, overload, over voltage, and over temperature protection features. In addition to flexibility and cost-efficiency, the PSRSP series offers high reliability and a long lifetime.

  • Universal AC Input/Full Range
  • Built-in Active PFC Funtion, PF>0.95
  • High Efficiency Up to 90%
  • Short Circuit/Overload/Over Voltage/ Over Temperature Protection
  • Forced Air Cooling By Built-in DC Fan
  • Built-in Fan Speed Control
  • Operating Altitude Up to 5000 Meters
  • Fixed Switching Frequency at 100KHz
  • CE Certified

Spec Sheet (PDF)
