TBI-BSC-SU-BF40
| d1 | 40 |
|---|---|
| L | 37 |
| B | 160 |
| H | 110 |
| b ±0.02 | 80 |
| h ±0.02 | 60 |
| B1 | 100 |
| H1 | 90 |
| E | 37 |
| P | 130 |
| d2 | 14 |
| X | 18 |
| Y | 26 |
| Z | 17.5 |
| Allowable Axial Load (Kgf) | 1834 |
| Allowable Static Load (Kgf) | 2119.7 |
| Maximum Speed (rpm) | 3710 |
Interested in large quantity discount?
Product Information

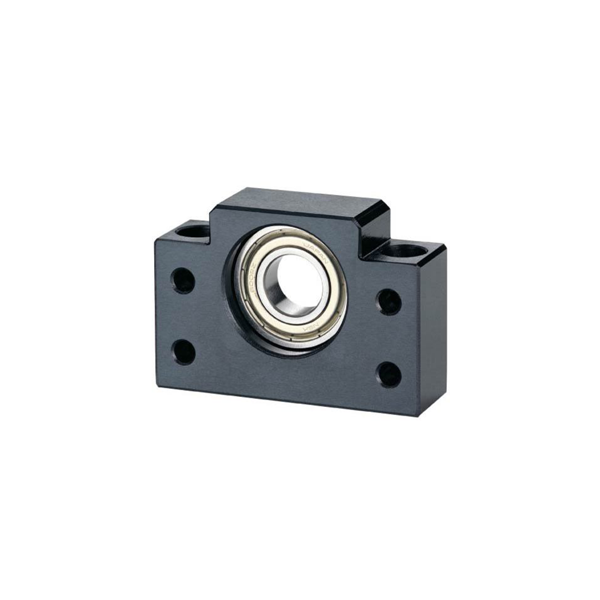

The Rectangular-Type BF Supported-Side Support Unit Series are available to fit input shaft diameters ranging from 8mm to 40mm. These support units are compact in size and allow for easy installation. The supported-side (also referred to as floated side) support units come with a bearing and snap ring to securely mount the finished ball screw shaft to the support unit. (Note: The bearing is not fixed to a position inside the supported-side support unit). All support units come with angular contact bearings which are assembled with the correct preload and amount of lubrication. These support units have an allowable axial load up to 1834Kgf, allow static load up to 2119.7Kgf, and can handle speeds up to 16,800RPM (model dependent).
We can end-machine any Anaheim Automation/TBI Ball Screw to fit our Support Units per the end dimensions shown below. Custom end-machining is also available, no MOQ required. Contact us for a quote!
- Supported-Side Rectangular Type
- Ball Screw Diameter: 12mm to 50mm
- Input Shaft Diameter: 8mm to 40mm
- Allowable Axial Load: Up to 1834Kgf
- Allowable Static Load: Up to 2119.7Kgf
- Maximum Speed: Up to 16,800RPM
- Applicable Screw Accuracy: C3, C5, or C7
- Low Profile Design
- Black Oxide Surface Treatment
.png)
