TGM24-056-19-5V-020A-64R-LW4
| Minimum Purchase Quantity | 1000 |
|---|---|
| Frame Size (mm) | 24 |
| Holding Torque (g-cm) | 300 |
| Bipolar Series RMS Current (A) | 0.2 |
| Bipolar Series Resistance Per Phase (ohm) | 25 |
| Bipolar Series RMS Voltage (V) | 5 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.06 |
Interested in large quantity discount?
Product Information

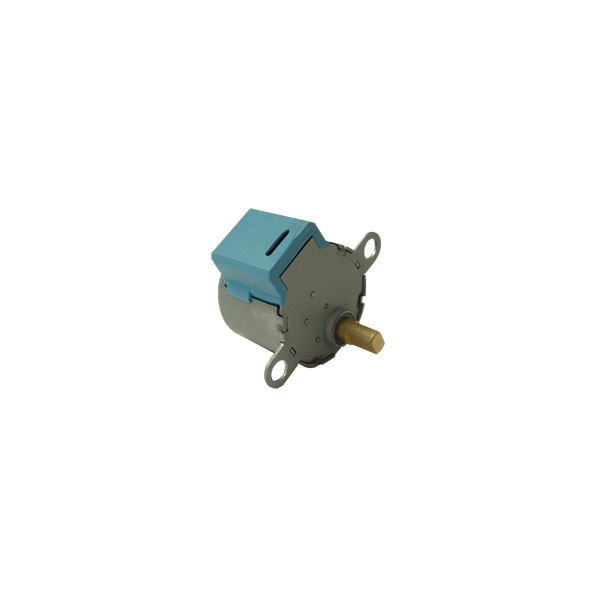

The TGM24 Series are small Permanent Magnet DC gearmotors measuring 24mm in diameter, and providing up to 4.17 ounce inches of holding torque. These CE Certified motors come standard with a 5.625° step angle, 64:1 gear ratio, and a four-lead wire connection as standard. Customization is available for larger quantities.
*Note: Minimum purchase quantity applies if not in stock. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper GearMotor
- High Torque in a Small Package at a Low Cost
- 300 g-cm of Torque (4 oz-in.)
- 64:1 Gear Ratio
- 24mm Diameter
- CE Certified and RoHS Compliant
.png)
.png)
Spec Sheet (PDF)
