TGM25-075-26-3V-047A-10R-LW4
| Minimum Purchase Quantity | 25 |
|---|---|
| Frame Size (mm) | 25 |
| Holding Torque (g-cm) | 1400 |
| Bipolar Series RMS Current (A) | 0.47 |
| Bipolar Series Resistance Per Phase (ohm) | 5.96 |
| Bipolar Series RMS Voltage (V) | 2.8 |

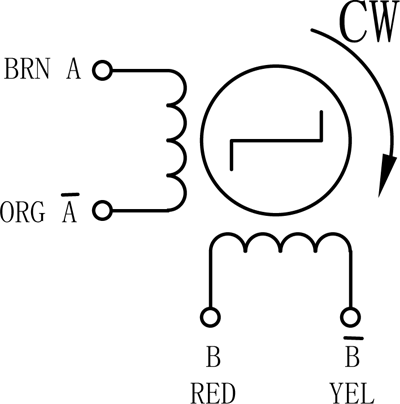

| # of Lead Wires | 4 |
| Weight (lbs) | 0.1 |
Interested in large quantity discount?
Product Information

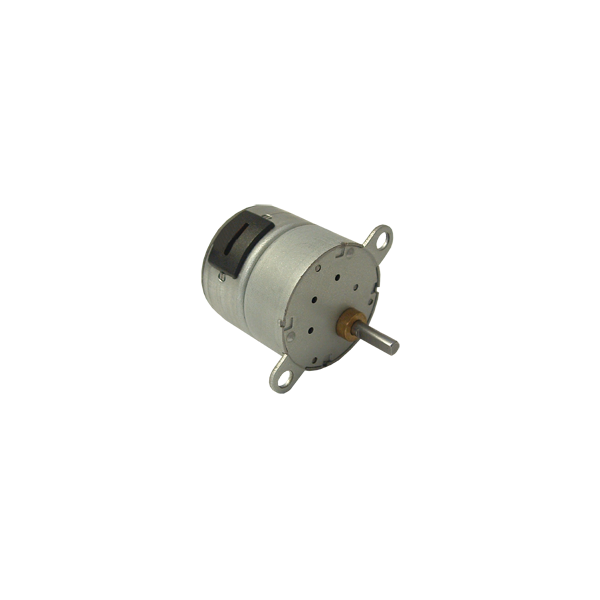

The TGM25-075-26-3V-047A-10R-LW4 Series are small Permanent Magnet DC gearmotors measuring 25mm in diameter, and providing up to 198.25 ounce-inches of holding torque. These CE Certified motors come standard with a 7.5° step angle, 10:1 gear ratio, and four lead wire connection as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 1400 g-cm Holding Torque (198.25 oz-in)
- 10:1 Gear Ratio Available
- 25 mm Diameter
- CE Certified and RoHS Compliant
Spec Sheet (PDF)
