TGM25-075-26-3V-052A-30R-LW4
| Minimum Purchase Quantity | 25 |
|---|---|
| Frame Size (mm) | 25.5 |
| Holding Torque (g-cm) | 4000 |
| Bipolar Series RMS Current (A) | 0.52 |
| Bipolar Series Resistance Per Phase (ohm) | 5 |
| Bipolar Series RMS Voltage (V) | 2.6 |
| # of Lead Wires | 4 |
| Weight (lbs) | 0.1 |
Interested in large quantity discount?
Product Information

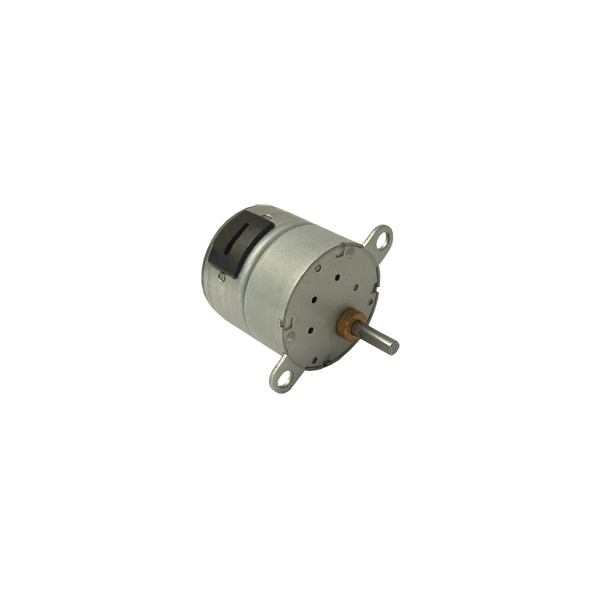

The TGM25-075-26-3V-052A-30R-LW4 Series are small Permanent Magnet DC gearmotors measuring 25.5mm in diameter, and providing up to 4,000 ounce-inches of holding torque. These CE Certified motors come standard with a 7.5° step angle, 30:1 gear ratios, and four lead wire connection as standard. Customization is available for larger quantities.
*Note: Not all motors are stock items. Minimum purchases may apply. Contact Anaheim Automation for more details.
- Permanent Magnet Stepper Gearmotor
- High Torque in a Small Package at a Low Cost
- Up to 4,000 g-cm Holding Torque (566.44 oz-in)
- 30:1 Gear Ratios Available
- 25.5 mm Diameter
- CE Certified and RoHS Compliant
Spec Sheet (PDF)
